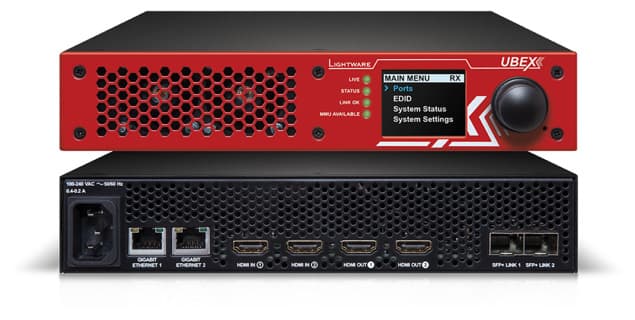

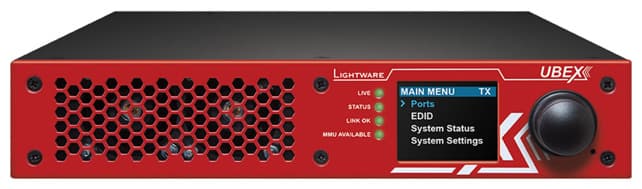

Optical AV Over IP Video System for 10G Networks UBEX is an optical scaling extender which allows 4K UHD@60Hz 4:4:4 uncompressed signal extension with latency-free multistreaming. The device is designed to use Video Over IP transmission on a 10G Ethernet network, it has standard, 10 Gbps SFP+ optical modules installed, which are field-exchangeable by the user. UBEX units can connect to create a complex network with the use of a standard Ethernet switch. An UBEX-MMU-X200 Matrix Management Unit (MMU) is required to control and supervise a virtual matrix, which can be created by connecting UBEX units as input and output endpoints to an Ethernet switch acting as crosspoint.The MMU device can update the firmware of endpoint UBEX units in a virtual matrix application simultaneously, without limitation for the number of devices in the setup. One of the prime advantages of such new architecture is scalability: the virtual matrix created can have a virtually infinite number of endpoints, limited only by the number of open ports on the Ethernet switch used. Such a virtual matrix can be also extremely asymmetrical, as e.g. it could have only a few (or one) devices on the input side, while an almost unlimited number of output end units. Using visually lossless compression, UBEX can extend two Full 4K UHD signals over a single, 10 Gbps Ethernet port. This generates substantial cost saving on the required Ethernet switch side, as with UBEX only half the router size is required compared to the needs of similar, 10 Gbps IP based architectures. For video signals which can be transferred within the 10G speed limit of a single optical fiber, a video signal redundancy feature is available employing the second optical fiber channel.
Highlighted features
- Scaling of video signals to match the properties of the target display/sink
- HDR support
- 4096x2160@60Hz/4:4:4 maximum resolution (600MHz)
- Uncompressed video up to 18 Gbps datarate (600 MHz pixel clock)
The UBEX design also favors dual-screen applications: each transmitter and each receiver handles 2x HDMI 2.0 video ports. UBEX can also be used in a point to point setup as a conventional extender pair between endpoints. It is not required to use an Ethernet switch when point to point extension is required. The Video Wall Wizard for UBEX features quick video wall installation with bezel adjustment and cropping, includes options for various layouts within the video wall matrix and also allows zones for smart management. The maximum reachable distance is ranging between 400 m and 80km, depending on the type of singlemode or multimode optical modules installed in the device, and on the signal properties. The internal power source of UBEX has Medical (60601) and ITE (60950) grade classifications for maximum reliability.
| | |
Hardware Features
UBEX-PRO20-HDMI-F100 UBEX-PRO20-HDMI-F110 UBEX-PRO20-HDMI-F120 Link 20G 20G 20G Optical Type of videos HDMI 2.0 HDMI 2.0 HDMI 2.0 Nr. of video inputs 2 2 2 Nr. of video outputs 2 2 2 USB HID (KVM) Balanced stereo analog audio I/O ports IR I/O and RS.232 control ports 1 Gbps Ethernet Nr. of fibers (W/STANDARD SFP +) 4 4 4 Nr. of fibers (W/BIDI SFP +) 2 2 2
| | |
Software Features
UBEX-PRO20-HDMI-F100 UBEX-PRO20-HDMI-F110 UBEX-PRO20-HDMI-F120 4K scaling Framerate conversion 4K UHD @ 60Hz 4:4:4 30 bit deep color support Audio embedding and de-embedding Advanced edid management HDCP 2.2 compliant Seamless switching 1 : for only one video stream Uncompressed Signal Management Over IP
Typical Applications
- Large office building environments
- Yacht and other high-end residential systems
- Rental and Staging
Lightware’s Ultra Bandwidth Extender, the UBEX is a new, optical solution, which allows 4K UHD@60Hz 4:4:4 uncompressed signal extension without latency, operating using a packet-based transmission instead of the conventional method. User-installable Optical Modules The device has standard, certified 10 Gbps SFP+ optical modules, which are plug and play and interchangeable by the user. Either duplex multimode/singlemode modules (one fiber for each direction per 10 Gbps link) or bi-directional singlemode modules (one fiber for both direction per 10 Gbps link) can be installed. Variable Extension Distances The maximum reachable distance is 400 m with multimode modules (OM4), and 10 km with short range singlemode modules, or 80 km with long range singlemode modules. Virtually Unlimited Scalability One of the primary advantages of the new architecture is scalability. By using standard Ethernet switches as virtual crosspoint for UBEX devices, an unlimited size virtual matrix can be built, where the crosspoint size is only limited by the size of the switch used. Also an advantage of the virtual matrix architecture is that the virtual matrix can be even extremely asymmetrical with one UBEX on one, and potentially several hundred UBEX units at the other end of the virtual crosspoint. Traditional Point-to-Point Extension and Transceiver mode UBEX can operate as a traditional point-point extender too, with reliable optical extension linking directly to the UBEX device in receiver mode. The UBEX device can operate as transmitter, receiver or transceiver as well. Add-on Modules UBEX is available with numerous add-ons, providing audio breakaway signal management, KVM, IR, RS232 and Gigabit Ethernet control and also USB KVM. Scaling of video signals to match the properties of the target display/sink
Key Features
- Metal enclosure
- Supports all VESA and HDTV resolutions
- HDR support
- Advanced EDID Management
- Fully non-blocking switching architecture
- Supports HDMI 4K signal formats (4K UHD @60Hz RGB 4:4:4, up to 18 Gbps)
- HDCP 2.2 and HDCP 1.4 compliant with cross conversion capabilities
- HDMI 2.0, HDMI 1.4 and DVI 1.0 compliant
- 4096x2160@60Hz/4:4:4 maximum resolution (600MHz)
- Supports all embedded audio formats (including PCM, Dolby Digital and DTS high bitrate audio)
- Uncompressed video up to 18 Gbps datarate (600 MHz pixel clock)
- Color subsampling option on outputs (4:4:4 to 4:2:0 downconversion)
- Pixel Accurate Reclocking
- Automatic or adjustable video format conversion (DVI, HDMI or HDMI deep color)
- Front to back cooling airflow
- Automatic or adjustable color space and color range conversion
- Status LED for extension link detection
- Built-in universal power supply
- Mounting options for rack, furniture or truss
Description
Optical AV Over IP Video System for 10G Networks UBEX is an optical scaling extender which allows 4K UHD@60Hz 4:4:4 uncompressed signal extension with latency-free multistreaming. The device is designed to use Video Over IP transmission on a 10G Ethernet network, it has standard, 10 Gbps SFP+ optical modules installed, which are field-exchangeable by the user. UBEX units can connect to create a complex network with the use of a standard Ethernet switch. An UBEX-MMU-X200 Matrix Management Unit (MMU) is required to control and supervise a virtual matrix, which can be created by connecting UBEX units as input and output endpoints to an Ethernet switch acting as crosspoint.The MMU device can update the firmware of endpoint UBEX units in a virtual matrix application simultaneously, without limitation for the number of devices in the setup. One of the prime advantages of such new architecture is scalability: the virtual matrix created can have a virtually infinite number of endpoints, limited only by the number of open ports on the Ethernet switch used. Such a virtual matrix can be also extremely asymmetrical, as e.g. it could have only a few (or one) devices on the input side, while an almost unlimited number of output end units. Using visually lossless compression, UBEX can extend two Full 4K UHD signals over a single, 10 Gbps Ethernet port. This generates substantial cost saving on the required Ethernet switch side, as with UBEX only half the router size is required compared to the needs of similar, 10 Gbps IP based architectures. For video signals which can be transferred within the 10G speed limit of a single optical fiber, a video signal redundancy feature is available employing the second optical fiber channel.
Highlighted features
- Scaling of video signals to match the properties of the target display/sink
- HDR support
- 4096x2160@60Hz/4:4:4 maximum resolution (600MHz)
- Uncompressed video up to 18 Gbps datarate (600 MHz pixel clock)
The UBEX design also favors dual-screen applications: each transmitter and each receiver handles 2x HDMI 2.0 video ports. UBEX can also be used in a point to point setup as a conventional extender pair between endpoints. It is not required to use an Ethernet switch when point to point extension is required. The Video Wall Wizard for UBEX features quick video wall installation with bezel adjustment and cropping, includes options for various layouts within the video wall matrix and also allows zones for smart management. The maximum reachable distance is ranging between 400 m and 80km, depending on the type of singlemode or multimode optical modules installed in the device, and on the signal properties. The internal power source of UBEX has Medical (60601) and ITE (60950) grade classifications for maximum reliability.
| | |
Hardware Features
UBEX-PRO20-HDMI-F100 UBEX-PRO20-HDMI-F110 UBEX-PRO20-HDMI-F120 Link 20G 20G 20G Optical Type of videos HDMI 2.0 HDMI 2.0 HDMI 2.0 Nr. of video inputs 2 2 2 Nr. of video outputs 2 2 2 USB HID (KVM) Balanced stereo analog audio I/O ports IR I/O and RS.232 control ports 1 Gbps Ethernet Nr. of fibers (W/STANDARD SFP +) 4 4 4 Nr. of fibers (W/BIDI SFP +) 2 2 2
| | |
Software Features
UBEX-PRO20-HDMI-F100 UBEX-PRO20-HDMI-F110 UBEX-PRO20-HDMI-F120 4K scaling Framerate conversion 4K UHD @ 60Hz 4:4:4 30 bit deep color support Audio embedding and de-embedding Advanced edid management HDCP 2.2 compliant Seamless switching 1 : for only one video stream Uncompressed Signal Management Over IP
Typical Applications
- Large office building environments
- Yacht and other high-end residential systems
- Rental and Staging
Lightware’s Ultra Bandwidth Extender, the UBEX is a new, optical solution, which allows 4K UHD@60Hz 4:4:4 uncompressed signal extension without latency, operating using a packet-based transmission instead of the conventional method. User-installable Optical Modules The device has standard, certified 10 Gbps SFP+ optical modules, which are plug and play and interchangeable by the user. Either duplex multimode/singlemode modules (one fiber for each direction per 10 Gbps link) or bi-directional singlemode modules (one fiber for both direction per 10 Gbps link) can be installed. Variable Extension Distances The maximum reachable distance is 400 m with multimode modules (OM4), and 10 km with short range singlemode modules, or 80 km with long range singlemode modules. Virtually Unlimited Scalability One of the primary advantages of the new architecture is scalability. By using standard Ethernet switches as virtual crosspoint for UBEX devices, an unlimited size virtual matrix can be built, where the crosspoint size is only limited by the size of the switch used. Also an advantage of the virtual matrix architecture is that the virtual matrix can be even extremely asymmetrical with one UBEX on one, and potentially several hundred UBEX units at the other end of the virtual crosspoint. Traditional Point-to-Point Extension and Transceiver mode UBEX can operate as a traditional point-point extender too, with reliable optical extension linking directly to the UBEX device in receiver mode. The UBEX device can operate as transmitter, receiver or transceiver as well. Add-on Modules UBEX is available with numerous add-ons, providing audio breakaway signal management, KVM, IR, RS232 and Gigabit Ethernet control and also USB KVM. Scaling of video signals to match the properties of the target display/sink
Key Features
- Metal enclosure
- Supports all VESA and HDTV resolutions
- HDR support
- Advanced EDID Management
- Fully non-blocking switching architecture
- Supports HDMI 4K signal formats (4K UHD @60Hz RGB 4:4:4, up to 18 Gbps)
- HDCP 2.2 and HDCP 1.4 compliant with cross conversion capabilities
- HDMI 2.0, HDMI 1.4 and DVI 1.0 compliant
- 4096x2160@60Hz/4:4:4 maximum resolution (600MHz)
- Supports all embedded audio formats (including PCM, Dolby Digital and DTS high bitrate audio)
- Uncompressed video up to 18 Gbps datarate (600 MHz pixel clock)
- Color subsampling option on outputs (4:4:4 to 4:2:0 downconversion)
- Pixel Accurate Reclocking
- Automatic or adjustable video format conversion (DVI, HDMI or HDMI deep color)
- Front to back cooling airflow
- Automatic or adjustable color space and color range conversion
- Status LED for extension link detection
- Built-in universal power supply
- Mounting options for rack, furniture or truss
