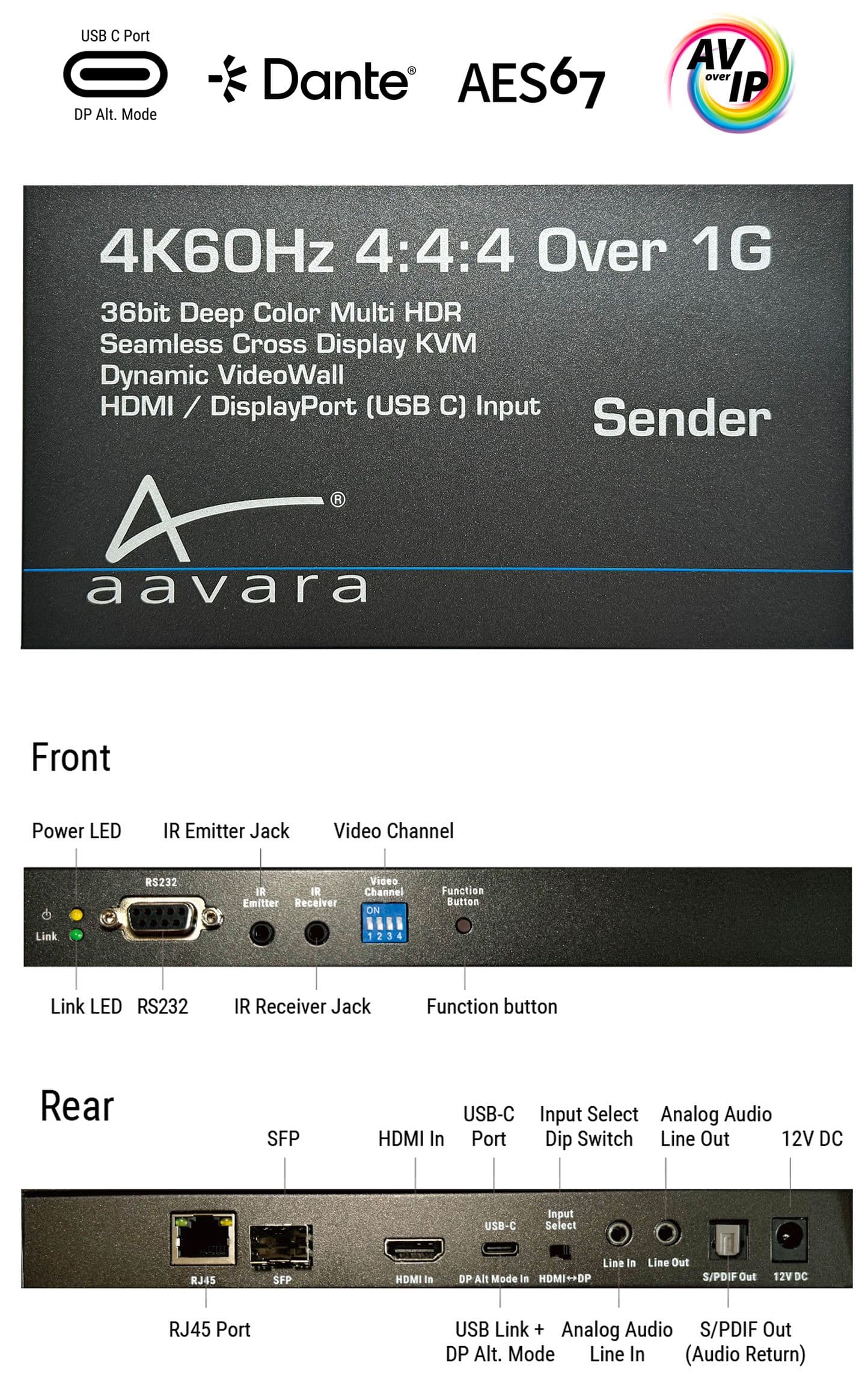

4K60Hz 4:4:4 Over IP Sender with HDMI/DisplayPort(USB-C DP Alt. Mode) Input and Dante/AES67 AoIP Support

PB9700-SE 4K/KVM over IP Sender is a great 4K video distribution solution for Residential, KVM and Signage deployment, integrating Web-based Aavara AV Master Control Software and 3rd Party Control drivers for centralizing control.

- 4K 60Hz YUV 4:4:4 Video Pass-Thru Over 1 Gbps Ethernet Network - 36bit Deep Color Video Engine for Dolby Vision, HDR 10+, HDR10, HLG multi HDR format support - HDMI/DisplayPort (USB C DP Alt. Mode) Daul Input - Dante/AES67 2x2 LPCM Audio AoIP In or Out - Loseless Audio Pass-Thru for up to 7.1 ch LPCM, Dolby ATMOS and DTS X digital audio. - HDMI eARC, ARC and S/PDIF Fiber Toslink for Audio Return Channel Support - S/PDIF Toslink Opticsl ARC Audio Output for up to 5.1 ch Dolby Digital/AC3 and DTS digital audio output AV receiver/amplifer. - Sub-stream Video for live video snapshot - Aavara AV Master Web Control interface - Major Controller Integration: SAVANT, Control4, AMX, RTI, Crestron, Extron, Elan g!, Neets and more. - Independent Matrix Routing for Video, Audio, IR, RS232, USB - Seamless Cross Display KVM Switching - CEC/IR/RS232 Comnand Pass-Thru & IP Command - USB 2.0 Pass-Thru - VideoWall Easy Setup & Flexibile Operate by Easy Web Interface configuration - Asymmtric VideoWall Support - Keyboard Hotkeys Control - Message On Screen

PB9700DNT fully meets the high demand of Residential application as Home AV matrix w/ 4K HDR, Dolby Atmos/DTS X and 3D support. And ideal for DOOH in Commercial Installation which demand Higher Video Quality, Analog Audio Line out to support Active Speaker for public area, IR, CEC and RS-232 to control the Displays. In addition, 4K Ultra HD & KVM w/ HighSpeed USB connection available.
