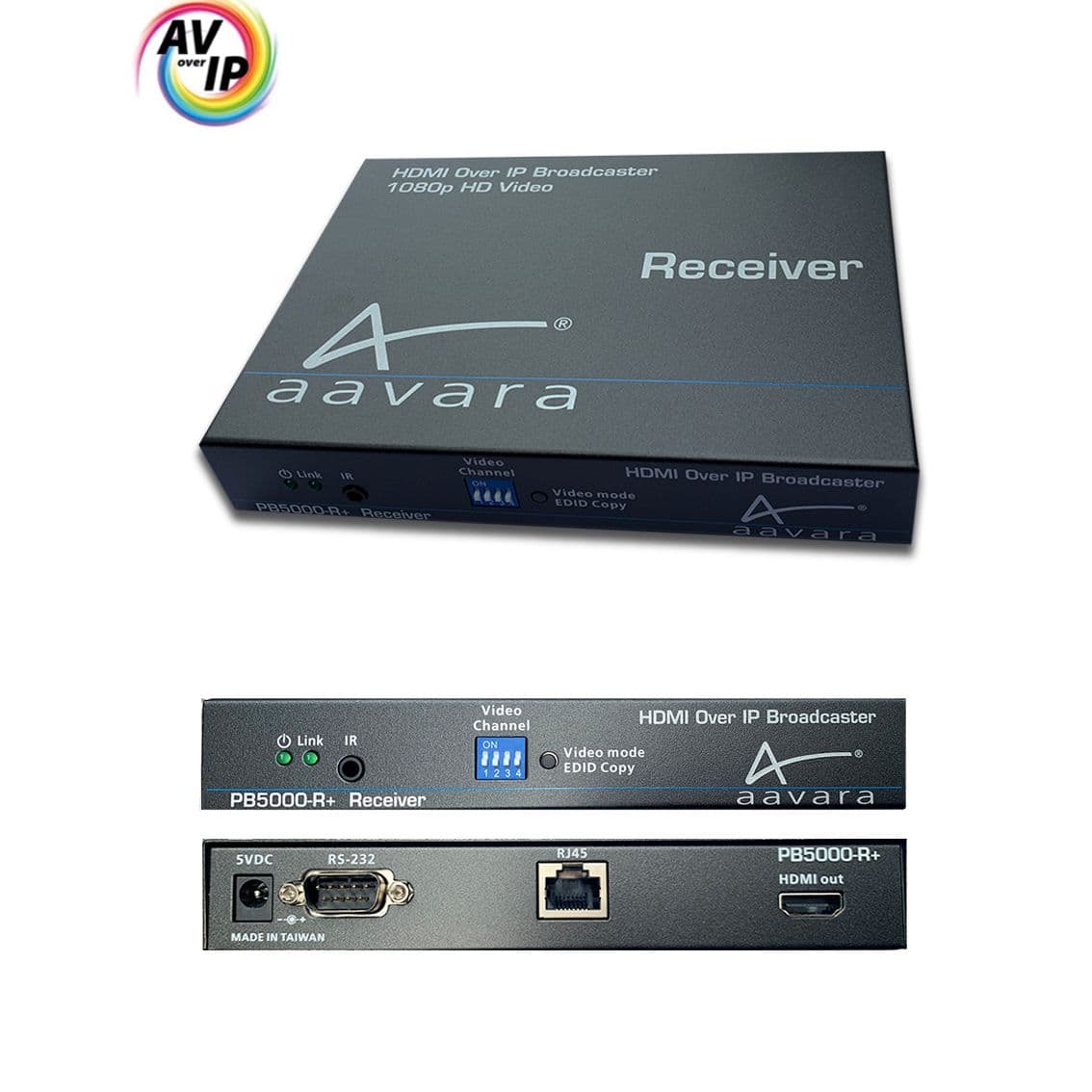

**PB5000-R+E**

HDMI over IP with RS-232 Control Pass-Thru

Multi-Casting Signage/DOOH Can Be So Easy by Aavara PB5000+PoE HDMI Over IP

New updated PB5000+PoE HDMI over IP which is a great HD video distribution solution for DOOH and Signage deploy. It delivers stunning Ultra High Quality 1080p HDMI Video broadcast over IP network, support Power Over Ethernet function that powered supplied by Network switch. Fully leveraging the mature inexpensive Gigabit Ethernet network switch in market, PB5000+ can supports Point to Point, Point to Many Broadcasting, and Multi-Casting which multiple video sources with PB5000+ Senders video streaming to multiple TVs/Displays/Projectors with PB5000+ Receiver.

NEW Functions! - Power over Ethernet - VideoWall function added for Max. 8x16 Displays by Easy Web Interface configuration. - Video Mode Switching Button for Smooth Motion Video or Sharp Clear Detail Image selection. - EDID Copy Button, Can copy Display EDID table to Sender side for ensuring Maximum EDID compatibility.

FEATURES

• 1080p Ultra High Quality Video transmission and Up to 9999 Groups Multi-Casting • Flexible and scalable HD Video broadcasting by Gigabit Ethernet LAN/Switch • 1 to 1, 1 to many & multi-casting broadcasting architecture, adding more displays without adding LAN bandwidth loading • Two Way RS-232 Command Unicast Broadcast for Controlling Display or video Source Device from remote site • Easy Dip Switch Matching for Up to 16 Multi-Casting Group configuration • New EDID Copy/Video Mode Switching Button for Optimal Video Performance and enhance on EDID compatibility • Video Wall function support, Max. Up to 8x16 displays by Easy Web Interface Configuration • Power Over Ethernet available

SPECS

• HDMI Spec.:1.3 Compatible • DVI Spec.:1.0 Compliant • HDCP Spec.:1.1/ 1.2 Compliant • Receiver Connector:Power Adapter in, RJ45, RS232, HDMI out • HDMI Audio Output:Stereo L/R, 16bits, 48Khz • HDMI Video Resolution:480p, 576p, 720p, 1080p • PC DVI Input Resolution:Up to1920x1200 @ 60Hz • Point to Point Distance:100M by Cat5e • Broadcast Mode:Sender to Receiver via LAN/Switch, One Sender to Many Receivers(Display/ TV/ Projector) • Broadcast Mode Length:Unlimited within LAN (Local Area Network) • RS-232 Baudrate:300~230, 400bps, Default 115,200bps • Operating Temperature:0-40ºC • Storage Temperature:-20~50ºC • Humidity Range:5%~90%RH • Power Consumption:5W • Power Adapter:DC 5V/2A • Material :Metal • Dimension (LxWxH):165x116x28mm • Weight:325g • Optional Accessory: Wall Mounting Kit (MK-100), 1U Rack Mount Kit (MK-1U) • Package Content:1080p HDMI Broadcaster Sender & Receiver, 5V DC Adapter, Usermanual
