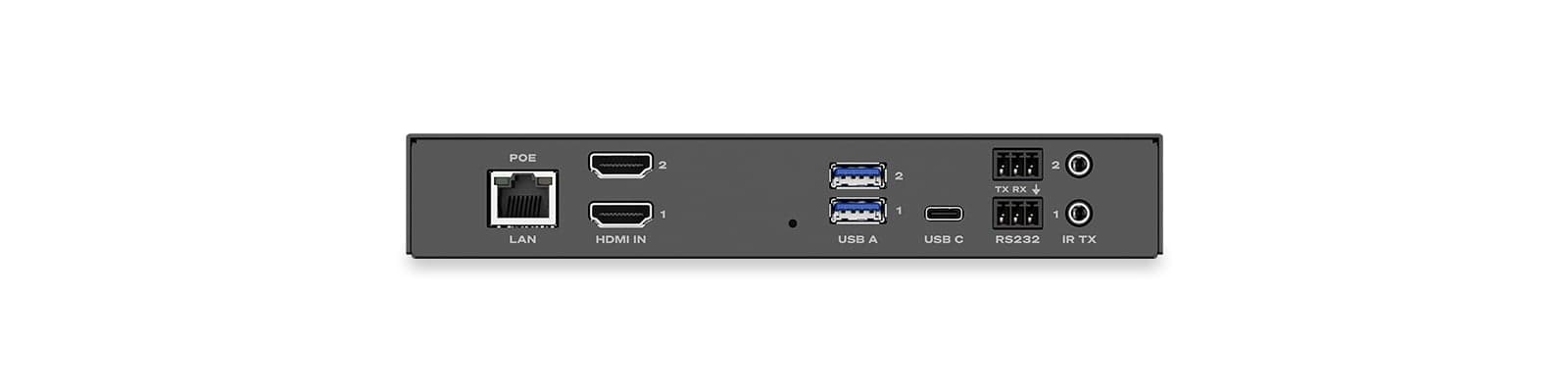

Q-SYS NVM Series network video endpoints deliver high-quality, low-bandwidth network video at scale to a broad range of spaces for hospitality, entertainment, collaboration, government and more. The Q-SYS NVM-302E is a network HDMI encoder that comes pre-installed with a single-channel encode video app (that can be expanded with a dual-channel encode video app).

Features & Benefits

• The NVM Series NVM-302E encoder includes a pre-installed, single-encode streaming video app (NVM-E1)
• Also available is the NVM-E2 Bundle which includes the NVM-302E encoder and the SLNVM-E2 expansion license that enables the dual-encode streaming video app (NVM-E2)
• Mediacast AV routing paradigm enables high-quality, network-efficient video distribution at scale
• Supports resolutions up to 4K60 4:4:4
• RS-232 and IR connectivity for third-party device control
• AV Bridging via USB-C (coming to a future firmware update)

Scale Q-SYS Video Experiences. Q-SYS NVM Series video endpoints expand the existing video use cases for your Q-SYS systems, pairing low-density HDMI I/O with network-efficient AV transport to deliver Q-SYS network video that is purpose-built for large-scale deployments into a broader range of spaces from entertainment and hospitality to collaboration, government and more. NVM Series are designed on a software paradigm that reduces the reliance on single-purpose hardware and is ready for future feature updates and additional video apps that will allow your Q-SYS system to evolve alongside your business needs. Design Natively. Deploy Faster. The new NVM Designer tool is an intuitive method for configuring and deploying large scale video systems natively within Q-SYS Designer Software, the singular software program that enables the rest of your system design, including DSP programming, AV routing and user control interface design.  NVM Designer enables no-code deployment of hundreds of endpoints in minutes, without the need for additional video matrix or management hardware. Deliver Holistic Q-SYS Experiences. Driven by the Q-SYS Full Stack AV Platform, NVM Series video endpoints leverage an integrated audio, video and control engine that streamlines system integration, from no-code workflows and end-to-end automation to comprehensive user control, making it even easier to expand the Q-SYS experience into more types of application spaces.

Specifications

| | |

Video I/O HDMI 2.0 input 2x HDMI 2.0 inputs each capable of receiving input video formats up to 4K60 4:4:4

NVM-E1 application: inputs are switched to a single 4K60 4:4:4 stream (max)  NVM-E2 application: each input is streamed to unique 4K30 4:4:4 streams (max)

HDCP 2.3 and 1.4 supported USB-C Input 1x USB-C 3.1 Gen 2 (enabled for bridging in future firmware release) Audio I/O HDMI input 8-channel PCM audio, Q-SYS routable General Dimensions 7.3 x 5.2 x 1.2 in (185 x 131.5 x 30.5 mm) Weight 1.75 lbs (794 g) Mounting Options Surface mounting hardware included; compatible with NV-RK accessory for rack mounting Other RS-232 2x RS-232 (3.5mm pitch euro-block) IR Transmit 2x IR Transmit (3.5mm mini jack) USB Type C USB 3.2 Gen 1 Type-C Device Port

- Device Mode and Host mode supported - AV Bridging supported in future firmware release - HID routing supported USB Type A 2x USB 3.2 Gen 1

- HID routing supported LAN 2.5GBASE-T compliant Power Over Ethernet PoE+, 802.3at Type 2, Class 4 (25.5W at PD, 30W at PSE), 5V 300mA total for USB-A and USB-C ports

PoE++ 802.3bt Type 3, Class 5 (40W at PD, 45W at PSE), 5V 900mA total for USB-A and USB-C ports Environmental Ambient operating temperature range 32° to 104° F (0° to 40° C) Humidity 5 to 90 RH % non-condensing Storage temperature -4° to 158° F (-20° to +70° C) What’s in the box? NVM-302E video endpoint

Euro-terminal connectors for RS-232 and Aux Power Surface mounting accessories Safety and warranty statements
