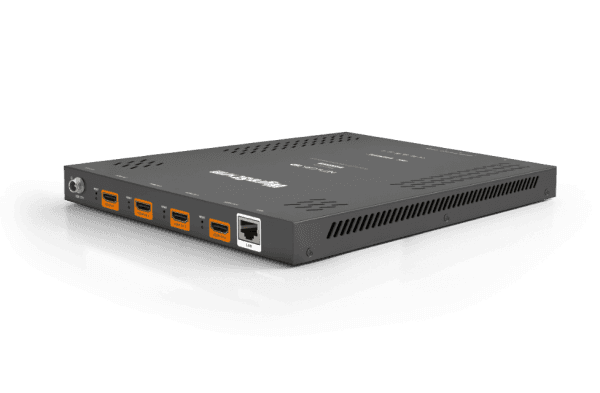

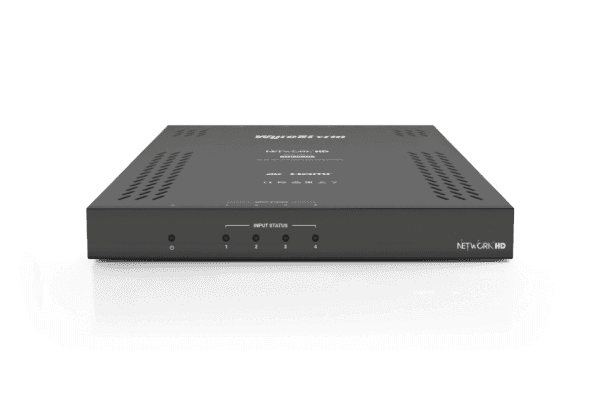

NHD-124-TX

The NHD-124-TX is a 4 input to 4 network stream device encoder compatible with the NetworkHD 100 an ultra low bandwidth AV over IP solution for distribution of point-to-point, one-to-many and many-to-many over a managed network. With its standards-based approach to video encoding, fast and simple system configuration and robust feature set, it provides the best value in networked video distribution. The NHD-124-TX encoder is intended for use with 120 series decoders (sold separately) to provide a complete end-to-end video distribution system. When used in conjunction with the NHD-CTL-PRO system controller complete control integration is simple.

TAILORED FOR MULTIPLE MARKETS

The NetworkHD™ 100 Series utilizes low bandwidth, infinitely scalable technology with the addition of powerful video wall support up to 16×16 for the best all-round solution for commercial AV installations. A 100 Series encoder can either be paired with a 100 Series decoder for matrix switching to individual screens or for video wall decoding, with both decoders including HDMI and analog audio breakout outputs, or an NHD-150-RX decoder for multiview monitoring.

## LOW BANDWIDTH ENCODING

The NHD-124-TX can encode AV signal using low bandwidth compression technology. Using this technology provides incredibly efficient video streams.

SPACE SAVING DEVICE

Space is always a factor when building an AV over IP system, and lack of it can cause headaches for any installer. Our NHD-124-TX solves this by combining four transmitters into one solution, allowing you to have the same functionality on a 1U footprint.

## 4K RESOLUTION

The NHD-124-TX is now supporting 4K content that ensures compatibility with the HDMI v1.4 HDCP 2.2 video source.

AES ENCRYPTION

Security is key in today’s world. The NHD-124-TX support AES 128-bit AV encryption over the network. Data sent from an NHD-124-TX is encapsulated using advanced methods to ensure that sensitive or private data cannot be accessed by 3rd-parties.

SECURITY

Equipped with the latest security protocols including SSH and HTTPS. Data and communications from the 100 series in encrypted end-to-end.

NHD CONTROL APP COMPATIBLE

Compatible with the NetworkHD Touch Control app. Control source, matrix and video wall switching with preview streams of each Encoder.

## Technical Specifications

Additional Features

AUDIO & VIDEO

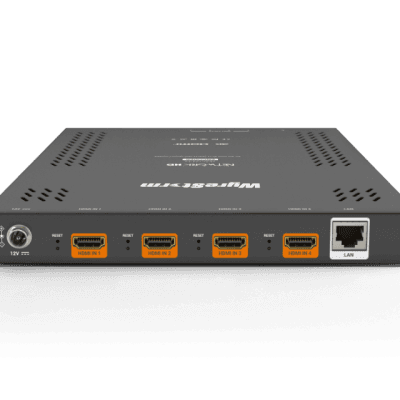

Inputs

4x HDMI Type A

Outputs

1x 8-pin RJ-45 female

End to End Latency

1080p: High Quality Mode: ~250ms Low Latency Mode: ~80ms 4K: High Quality Mode: ~300ms Low Latency Mode: ~150ms

Audio Formats

LPCM/MPEG4 AAC stereo, 48KHz

Video Resolution (Max)

3840x2160p @ 30Hz 1920x1080p @ 60Hz

Maximum Pixel Clock

297MHz

COMMUNICATION & CONTROL

HDMI

HDMI 1.4 | HDCP 2.2 | EDID

LAN

1x 8-pin RJ-45 female | 10/100/1000Base-T Security Protocols

AES 128 | SSH | HTTPS

POWER

Power Supply

12V DC 3A

• Supports up to 4K @ 30Hz video content
• Flexible encoding using low bandwidth technology. Encoding is configurable between a constant bitrate or variable bitrate.
• Seamless video switching – no black screens or freeze frames
• Support all SD and HD formats – including interlaced content
• Compatible with NHD-150-RX Multiview receiver
• Live video preview streams for use with NetworkHD Touch or a custom control UI
• Flexible IP address settings: AutoIP/Static/DHCP
• Batch firmware update and batch settings functions offers a massive reduction on installation time
• Custom EDID management
• HDCP 2.2 compliant
• Supports AES-128 for audio/video decryption.
• Supports HTTPS/SSH/802.1X.
