The NetworkHD 120 series takes the award-winning 100 series and elevates to a new level. The 120 series components support both video encoding/decoding. With 4K resolution, video transmissions look better than ever and use up to 6x less bandwidth. AV stream are fully secure over the network using AES 128-bit encryption methods, ensuring any sensitive data cannot be maliciously accessed. Of course, the series would not be complete without retaining the powerful video wall and Multiview processing. The 120 series does one better by adding screen rotation and mosaic video wall ability.
TAILORED FOR MULTIPLE MARKETS
The NetworkHD™ 100 Series utilizes low bandwidth, infinitely scalable technology with the addition of powerful video wall support up to 16×16 for the best all-round solution for commercial AV installations. A 100 Series encoder can either be paired with a 100 Series decoder for matrix switching to individual screens or for video wall decoding, with both decoders including HDMI and analog audio breakout outputs, or an NHD-150-RX decoder for multiview monitoring.
Low Bandwidth Decoding

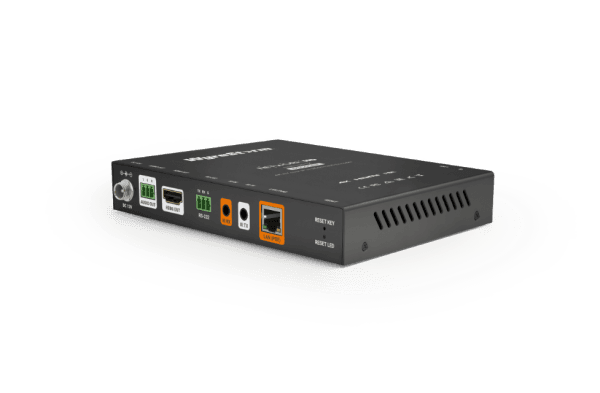

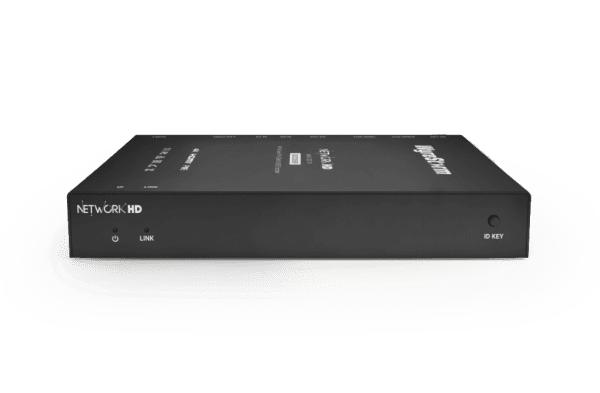

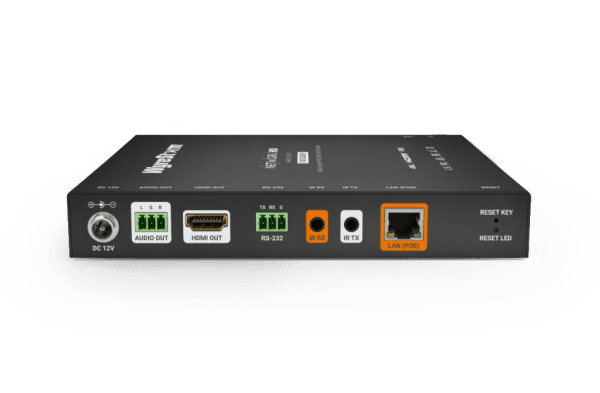

The NHD-120-RX can decode AV signals from the transmitter using low bandwidth compression technology. Using this technology provides incredibly efficient video streams.
4K Resolution
The NHD-120-RX is now supporting 4K content that ensures compatibility with the HDMI v1.4 HDCP 2.2 video source, while a built-in scaler ensures hassle-free mixing of the latest 4K displays and 1080p screens within an installation.
AES Encryption
Security is key in today’s world. The NetworkHD 120 series support AES 128-bit AV encryption over the network. Data sent from an NHD-120-TX is encapsulated using advanced methods to ensure that sensitive or private data cannot be accessed by 3rd-parties.
Video Walls
Create captivating large format video walls with the ability to process up to 256 screens (16×16). Easily adjust for screen bezels to ensure the video is picture-perfect. The NHD-120-RX also allows you to create mosaic video walls with image rotation.
SECURITY
Equipped with the latest security protocols including SSH and HTTPS. Data and communications from the 120 series in encrypted end-to-end.
POWERFUL ROUTING ENGINE
Boasting the ultimate in signal flexibility, the 120 Series can discretely deliver audio, infrared, and RS-232 streams separate to the video via a modular IP network. True signal breakaway can create custom assignments.
NHD CONTROL APP COMPATIBLE
Compatible with the NetworkHD Touch and Companion Control apps. Control source, matrix and video wall switching with preview streams of each encoder.
The NetworkHD 120 series takes the award-winning 100 series and elevates to a new level. The 120 series components support both video encoding/decoding. With 4K resolution, video transmissions look better than ever and use up to 6x less bandwidth. AV stream are fully secure over the network using AES 128-bit encryption methods, ensuring any sensitive data cannot be maliciously accessed. Of course, the series would not be complete without retaining the powerful video wall and Multiview processing. The 120 series does one better by adding screen rotation and mosaic video wall ability.
TAILORED FOR MULTIPLE MARKETS
The NetworkHD™ 100 Series utilizes low bandwidth, infinitely scalable technology with the addition of powerful video wall support up to 16×16 for the best all-round solution for commercial AV installations. A 100 Series encoder can either be paired with a 100 Series decoder for matrix switching to individual screens or for video wall decoding, with both decoders including HDMI and analog audio breakout outputs, or an NHD-150-RX decoder for multiview monitoring.
Low Bandwidth Decoding
The NHD-120-RX can decode AV signals from the transmitter using low bandwidth compression technology. Using this technology provides incredibly efficient video streams.
4K Resolution
The NHD-120-RX is now supporting 4K content that ensures compatibility with the HDMI v1.4 HDCP 2.2 video source, while a built-in scaler ensures hassle-free mixing of the latest 4K displays and 1080p screens within an installation.
AES Encryption
Security is key in today’s world. The NetworkHD 120 series support AES 128-bit AV encryption over the network. Data sent from an NHD-120-TX is encapsulated using advanced methods to ensure that sensitive or private data cannot be accessed by 3rd-parties.
Video Walls
Create captivating large format video walls with the ability to process up to 256 screens (16×16). Easily adjust for screen bezels to ensure the video is picture-perfect. The NHD-120-RX also allows you to create mosaic video walls with image rotation.
SECURITY
Equipped with the latest security protocols including SSH and HTTPS. Data and communications from the 120 series in encrypted end-to-end.
POWERFUL ROUTING ENGINE
Boasting the ultimate in signal flexibility, the 120 Series can discretely deliver audio, infrared, and RS-232 streams separate to the video via a modular IP network. True signal breakaway can create custom assignments.
NHD CONTROL APP COMPATIBLE
Compatible with the NetworkHD Touch and Companion Control apps. Control source, matrix and video wall switching with preview streams of each encoder.
