NHD-120-IW-TX

Experience unmatched versatility with the NHD-120-IW-TX, your ultimate AV over IP solution. This 2-gang in-wall encoder, part of our 100 series, boasts an HDMI input and a dedicated Ethernet port, designed to seamlessly integrate with today’s modern laptops and tablets. Whether you’re enhancing your educational setup or optimizing your corporate environment, this encoder is your key to success. Install it discreetly in a wall, table, desk, podium, or any location where remote input is essential. The NHD-120-IW-TX also offers the flexibility to connect the CAM-210-PTZ camera via HDMI while providing a robust Ethernet connection to ensure your AV streams are pristine and uninterrupted.

TAILORED FOR MULTIPLE MARKETS

The NetworkHD™ 100 Series utilizes low bandwidth, infinitely scalable technology with the addition of powerful video wall support up to 16×16 for the best all-round solution for commercial AV installations. A 100 Series encoder can either be paired with a 100 Series decoder for matrix switching to individual screens or for video wall decoding, with both decoders including HDMI and analog audio breakout outputs, or an NHD-150-RX decoder for multiview monitoring.

H.264/H.265 Encoding

Choose your flavor, the NHD-120-IW-TX can encode AV signal using either H.264 or H.265. Using H.265 provides incredibly efficient video streams. For comparison, an H.265 5Mbps stream is equal to a 30Mbps H.264 stream.

4K Resolution

The NHD-120-TX is now supporting 4K content that ensures compatibility with the HDMI v1.4 HDCP 2.2 video source, while a built-in scaler ensures hassle-free mixing of the latest 4K displays and 1080p screens within an installation.

Compact Design

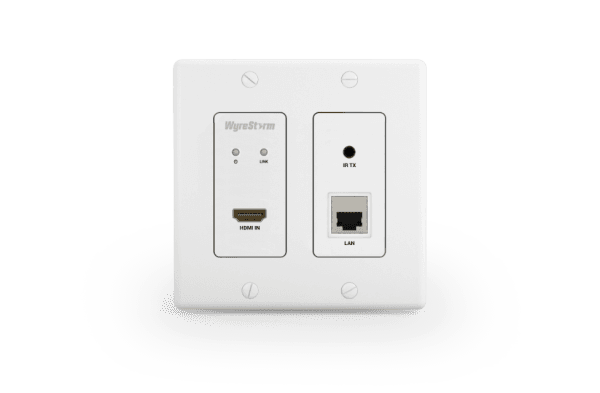

The simplistic white decora plate and small 2-gang size allows the encoder to be installed and blend in to a number of different environments. The front of the encoder isn’t crowded with unnecessary connections and the support for PoE means you don’t need to run extra cables through the wall.

Ecosystem

The NHD-120-IW-TX is just one of many models within the NetworkHD 100 series. Mix and match different models to tailor your system to your requirements. All of which are controlled and maintained by the NHD-CTL-PRO controller.

Technical Specifications

Additional Features

AUDIO & VIDEO

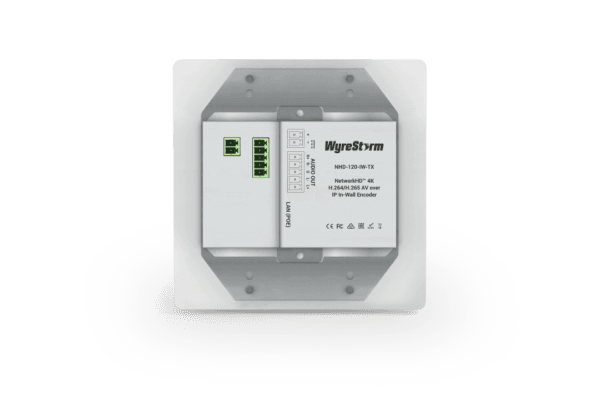

Inputs

1x HDMI 19-pin HDMI type A Outputs

1x Ethernet: RJ45 Female socket 1x 5-pin Phoenix Analog Audio 1x 3.5mm IR TX Output Video Encoding H.264/H.265 End to End Latency

1080p: High Quality Mode: ~250ms Low Latency Mode: ~80ms 4K: High Quality Mode: ~300ms Low Latency Mode: ~150ms Encoding Data Rate Max: 30Mbps (configurable) Default parameters: 4K30/H.265/VBR 16Mbps Stream Preview CIF@30/MJPEG/512Kbps Video Resolution (Max)

3840X2160p@30 4:2:0 1920x1080p@60 4:2:0 1920X1200p@60 4:2:0 Audio: LPCM (stereo,32/44.1/48Khz,16-bit) Maximum Pixel Clock

150MHz COMMUNICATION & CONTROL

HDMI

HDMI v1.4 | HDCP 2.2 | EDID Network 1x 1GbE RJ45 for av stream 1 x Auxiliary 1GbE channel for network connectivity of attached source devices RS-232 1x 3.5mm debug only Security Protocols

AES 128 | SSH | HTTPS POWER

Power Supply

12V DC 1A | 802.3af PoE Compliant

Max Power Consumption

Max: 12w | Average: 6w

• Supports up to 4K @ 30Hz video content
• Support all SD and HD formats – including interlaced content
• Flexible encoding using either H.264 or H.265 encoding. Encoding is configurable between a constant bitrate or variable bitrate.
• Low bandwidth or high-quality transmission methods:
  Low latency \~ 80ms. High-quality \~250ms
• Compatible with NHD-150-RX Multiview receiver.
• Analog audio de-embed for easy connection to external audio DSP or amplifier
• Seamless video switching – no black screens or freeze frames
• Hugely scalable I/O, utilizing multicast technology
• Live video preview streams for use with NetworkHD Touch or a custom control UI
• Flexible IP address settings: AutoIP/Static/DHCP
• IR transmitter for source control
• Batch firmware update and batch settings functions offers a massive reduction on installation times
• Custom EDID management with import/export
• HDCP 2.2 compliant
• IEEE 802.3af PoE compliant PD
