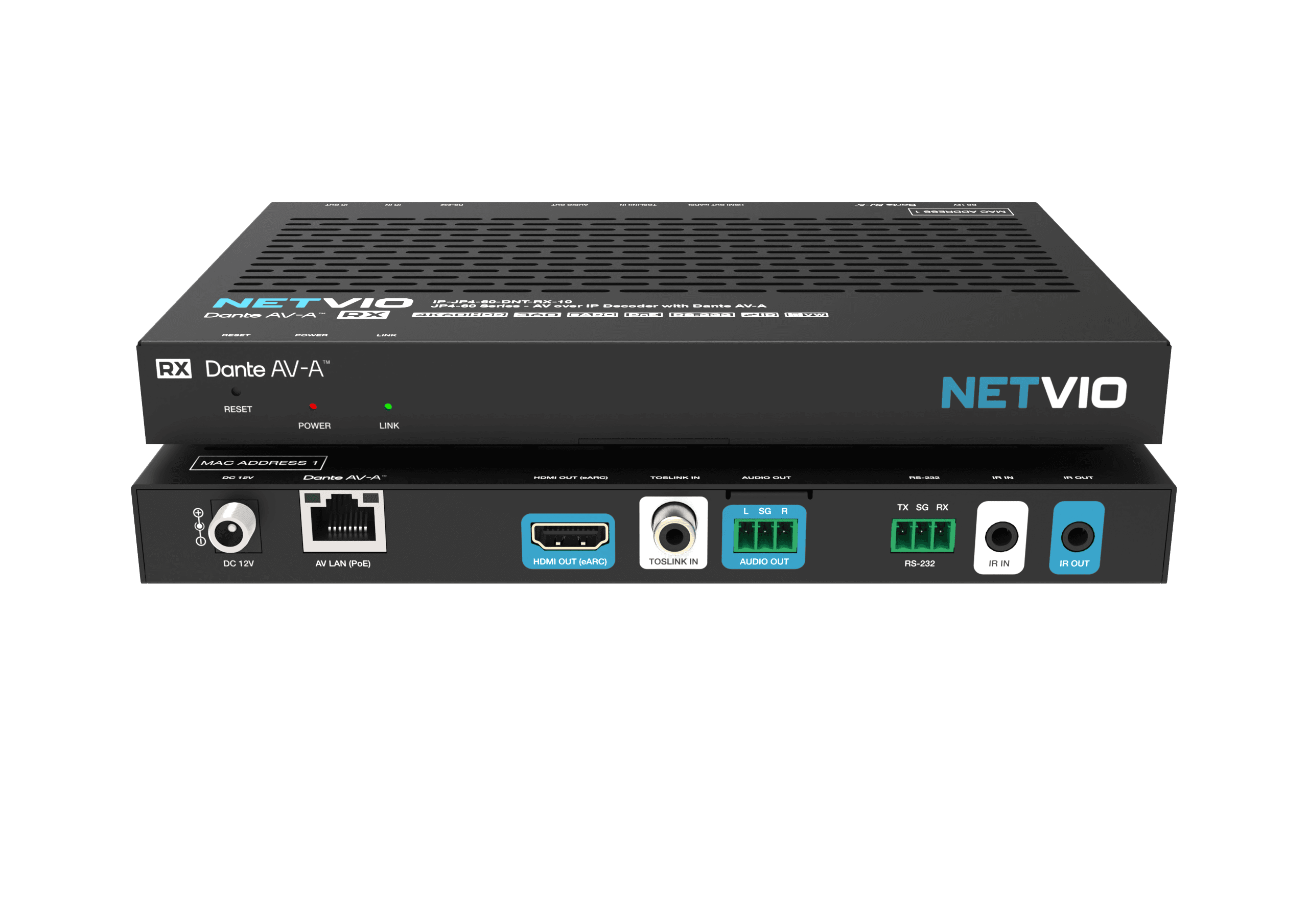

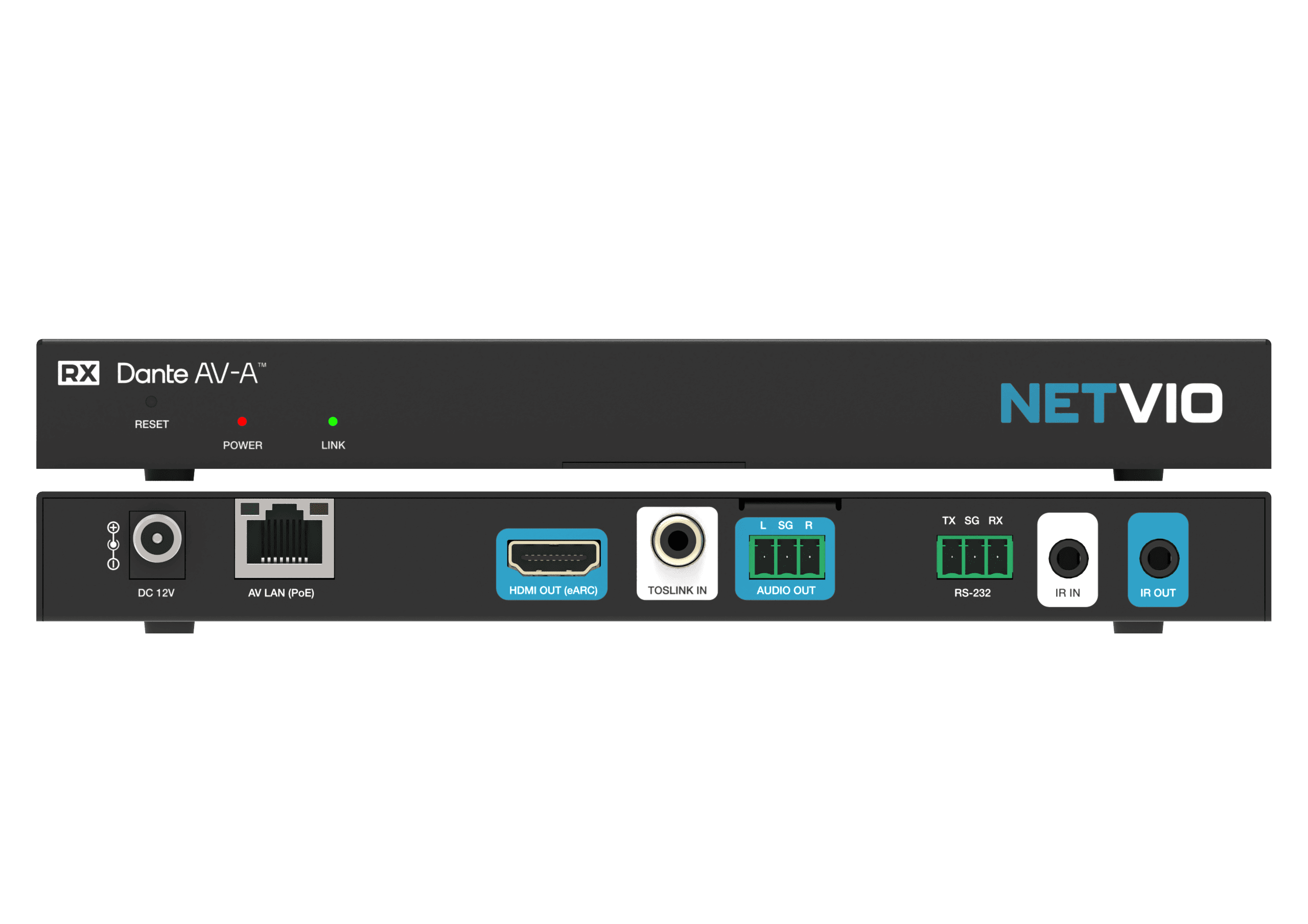

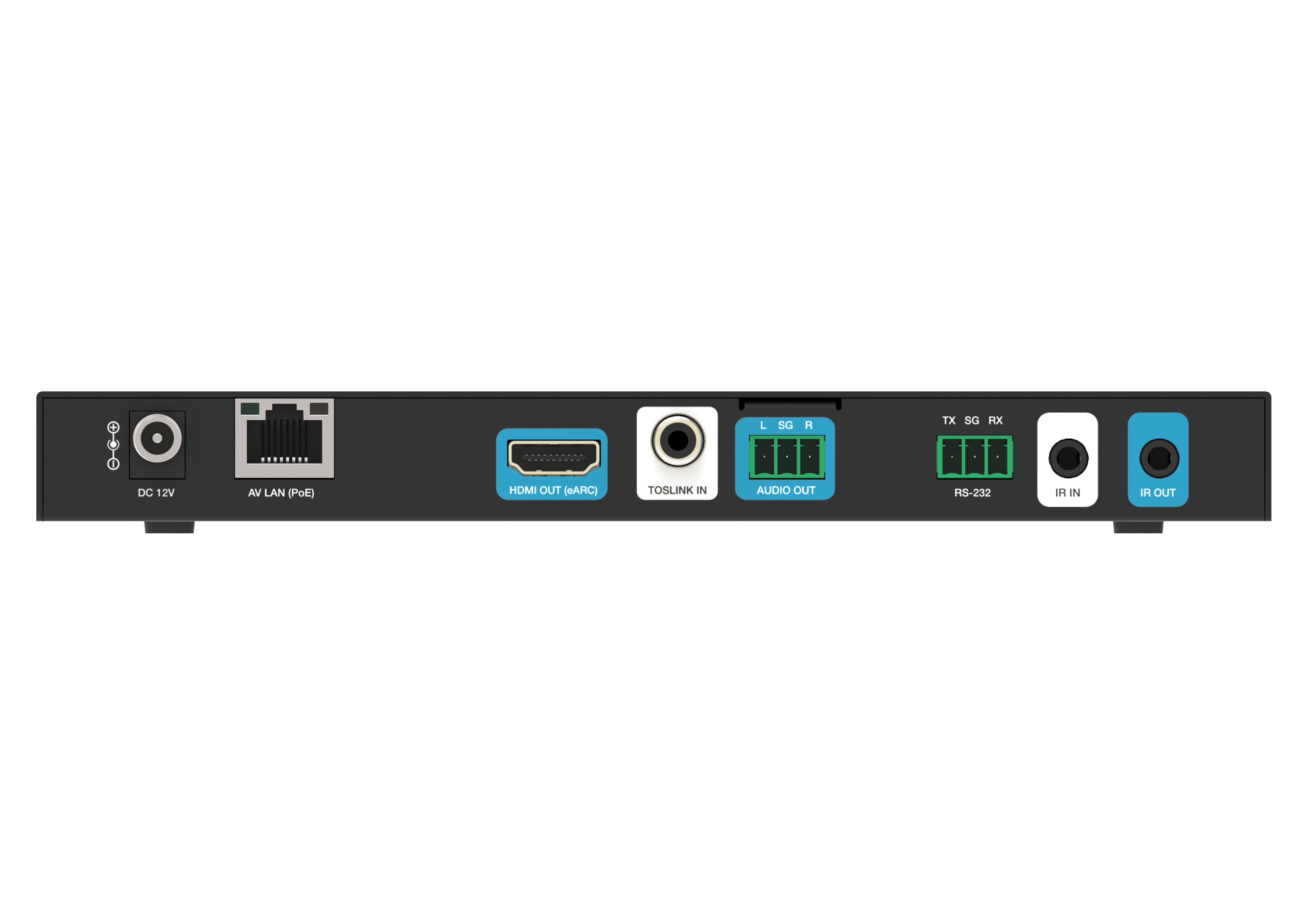

4K60 (4:4:4) AVoIP Dual Stream Decoder over 1GbE up to 100m (328ft) with Dante AV-A

• Newest iteration of Dante compatible video solutions.
• Adds two channels of Dante audio that are interoperable with any Dante-enabled device.
• Device monitoring through Dante Director & Domain Manager.
• Latest Gen2 Dual 1Gb 4K (4:4:4) HDR, 2K30 PoE Encoder
• Superior picture quality with pixel-for-pixel quality,
• 4K HDR video encoding not surpassing 850Mbs
• ContentPlus+ 2K30 Low Bandwidth Real-time-stream-protocol (RTSP) including stereo audio
• Fast Switching with Genlock Synchronicity.

Dante AV-A extends Audinate’s world-leading audio networking into video, creating one unified platform for distributing both over standard IP networks. This removes the need for separate cabling systems, simplifies design, and lowers overall costs. ​ Supporting 4K60 4:4:4 video with sub-frame latency and HDCP-protected content, Dante AV-A delivers cinema-quality performance on gigabit Ethernet. With seamless integration into the vast Dante ecosystem, it enables scalable, flexible, and future-proof AV systems that meet the demands of modern installations.

Dante AV-A

4K60 4:4:4 video quality delivers pixel-for-pixel perfection, with every pixel carrying full color data at a smooth 60 frames per second.   This ensures sharper text, vibrant colors, and lifelike motion—essential for control rooms, video walls, high-end home cinema, and immersive presentations, and increasingly critical with larger displays

One Product, Two Opportunities

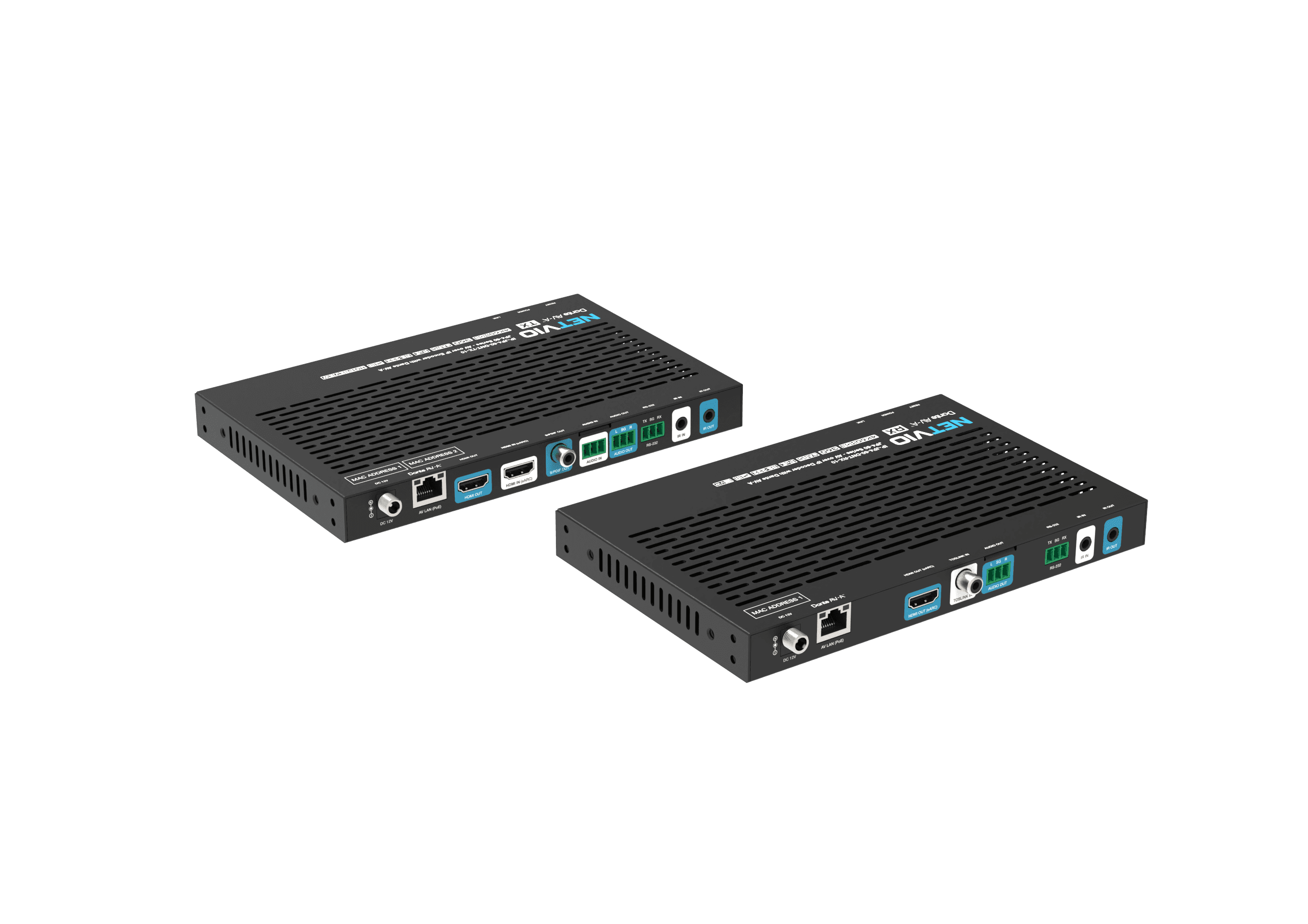

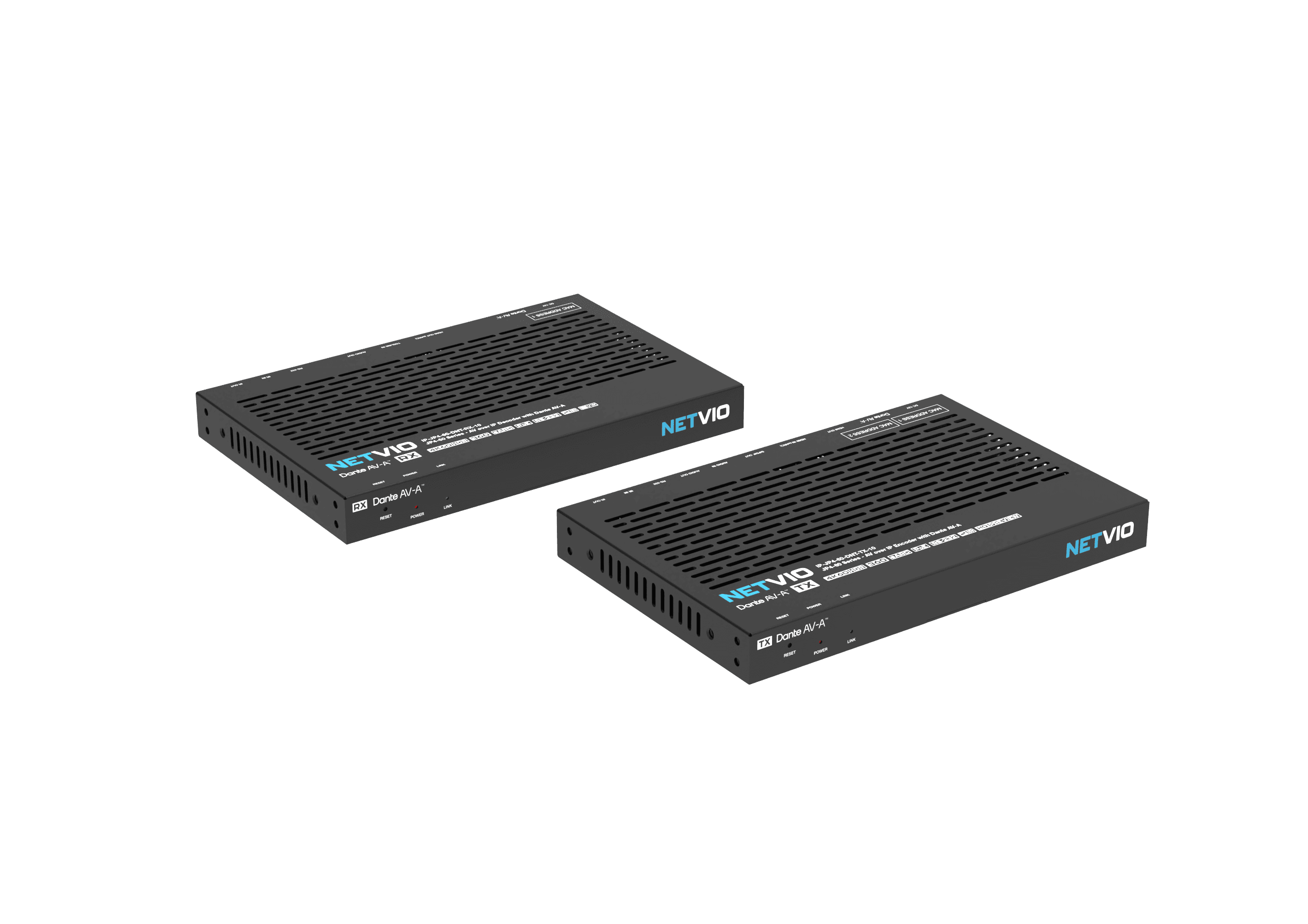

Netvio's JP4-60-DNT encoders and decoders have multi-modes according to project requirements. Deployed as a part of smaller Netvio managed solution or cloud managed by the latest Dante AV-A software and tools, the JP4-60-DNT series is a versatile product fully licensed out of the box.

Netvio Mode

Netvio Mode is an extension to a conventional AVoIP project, adding JP-DNT devices to enable Dante streaming capabilities. System configuration is managed by Netvio360, with encoder & decoder control using IP-JP4-CL-10.

Netvio Mode

• Free Netvio Software Configuration
• Subscription Free
• Requires IP-JP4-CL-10 Controller
• Compatible with NetvioGo
• Control System drivers for Crestron, Q-SYS, Control4, Savant, Elan, RTI
• Compatible with Netvio SW-IP & 3rd Party Network Switches.
• Compatible with Netvio ContentPlus+ Secondary 2K streaming.

AV-A Mode

AV-A is the newest video management platform by Dante. In contrast to Netvio Mode, Dante AV-A is managed and controlled exclusively by familar Audinate software tools including Controller, Domain Manager where value add features such as remote access are inclusive.

AV-A Mode

• Configured using Dante software tools.
• Controlled using free Dante Controller
• Compatible with Dante Director (subject to subscription).
• Does not require IP-JP4-CL-10 Controller
• Control System drivers for Crestron, Q-SYS & AMX
• Compatible with third-party network switches only.
• Compatible with Netvio ContentPlus+ Secondary 2K streaming.

Secure Your Dante Network

Add Netvio devices to Dante Director to enable user authentication for device access, control and management. Only authorized users can connect, modify device subscriptions and monitor media flow.

Remote Management

Remotely launch Dante Controller to manage, update and reconfigure your Netvio Dante Device subscriptions. No more need to physically plug laptops into the local network to access and configure device subscriptions and routing.

Remote Control

Manage your network and monitor the status of your Netvio devices from any location with any web browser. Monitor Dante device clocking, connectivity, and latency for one or more physical IP networks from a convenient online dashboard.

AV over Routed Networks

Dante Director gives you the ability to route Netvio across subnets barriers, giving you the flexibility to configure logical AV pathways and subscriptions to meet your needs. Extend your Dante network beyond the limitations endemic to unmanaged network configurations.

Manage and monitor multiple discrete customer networks from any remote location with your web browser, requiring fewer onsite visits to resolve customer issues. All customer accounts can be managed from a single account, providing a convenient managed service dashboard for daily use.

Event Logging

Dig deep into potential issues with detailed device event logging provided for each discrete device connection.
