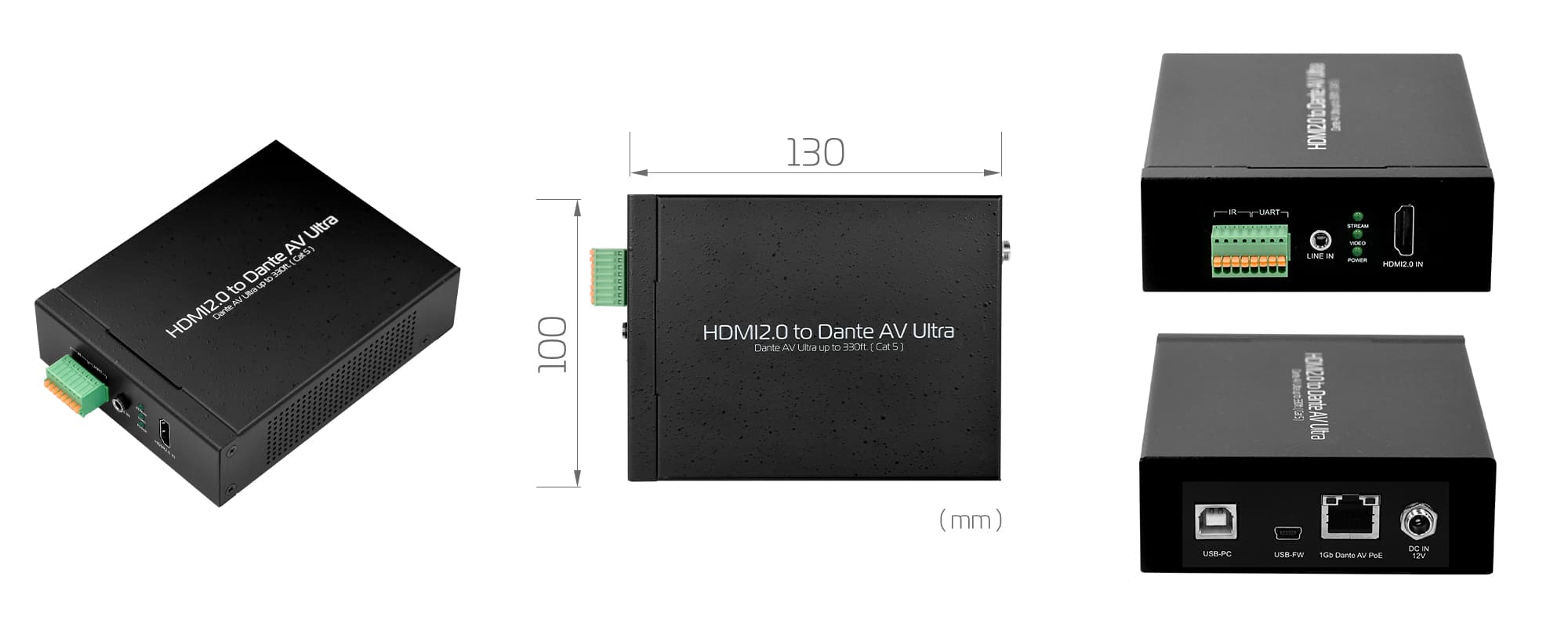

HDMI2.0 to Dante AV Ultra Encoder

| | |

A/V Input Interfaces Video

HDMI 2.0×1

Audio 3.5mm Phone Jack×1 for L/R Audio A/V Output Interface Converted Video

RJ45×1(For Dante AV Ultra output) Video Feature Dante AV Ultra

4096x2160p@60/50fps 4096x2160p@30/25/24fps 3840x2160p@60/50fps 3840x2160p@30/25/24fps 1920×1080p@60/50fps 1920×1080p@30/25/24fps 1920×1080i@60/50fps 1280×720p@60/50fps 1280×1024p@60fps 1280×960p@60fps 1024×768p@60fps 800×600p@60fps 640×480p@60fps 720×480p@60fps 720×576p@50fps 720×480i@60fps 720×576i@50fps Video Encode N/C Audio Feature Input Audio Stream:

HDMI : 8 Channels, 24bit, 32~192KHz 3.5mm Phone Jack : 2 Channels, 24bit, 48KHz

Output Audio Stream: Dante AV Ultra : Up to 8 Channels, 24bit, 32~192KHz

| | |

Network Feature 1×RJ45 for 10/100/1000Mbps Ethernet

DHCP Client Support Streaming protocol Dante AV Ultra

| | |

Misc. Features 1×USB 2.0 (For PC usage)

Web UI for System Configuration Firmware Upgradable LED Indicator PGM mode switch N/C Support Record Device N/C

| | |

SDK Support N/C AI Features N/C

| | |

Record Format N/A

| | |

Power Supply 7.5V ~ 15V

Support POE input
