DuetE5-WP-C-B/W
Visionary introduces the DuetE5-WP-C 4K60 4:4:4 Wallplate AV over IP Encoder, Visionary’s first USB-C input wallplate, expanding the versatility of the 5 Series platform.
Categories
Brand
Formfactor
Unit Type
Video Resolution
Audio Codec
Network Specifications
Latency (Best)
Security Specifications
Monitoring & Management
Video Chip Manufacturer

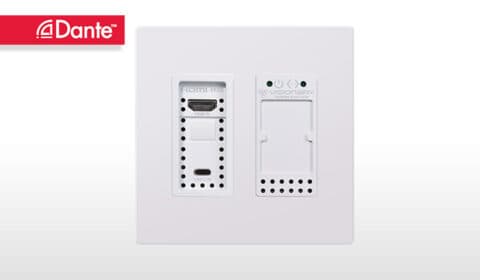

Visionary introduces the DuetE5-WP-C 4K60 4:4:4 Wallplate AV over IP Encoder, Visionary’s first USB-C input wallplate, expanding the versatility of the 5 Series platform. Building upon Visionary’s proven PacketAV® technology, the DuetE5-WP-C delivers the performance and simplicity of networked AV in an elegant in-wall form factor designed for professional installations.
The DuetE5-WP-C encodes 4K60 4:4:4 ultra-low-latency video and Dante®/AES67 audio over a single Gigabit Ethernet port, ensuring outstanding visual fidelity and network efficiency. Combining both USB-C and HDMI inputs, it offers flexible source connectivity for modern devices while maintaining consistent image quality and system reliability across the network.
The USB-C input supports DisplayPort Alt Mode video and bi-directional USB-over-IP data, allowing KVM extension and USB device routing across the network. USB peripherals such as cameras or control interfaces connected to a remote 5-series decoder can be accessed through the wallplate’s USB-C port, bridging local and networked USB functionality.
Designed for quick and reliable installation, the DuetE5-WP-C is powered by standard Power over Ethernet (PoE) and connects through a single category cable. Its angled 45-degree Ethernet connector allows installers to maintain proper CAT5/6 bend-radius compliance within electrical boxes, reducing cable strain and ensuring consistent performance in tight spaces.
As part of Visionary’s PacketAV® ecosystem, the DuetE5-WP-C can operate on any standard IP network – either integrated into existing enterprise networks or on a dedicated private network. With its advanced capabilities, compact design, and streamlined integration, the DuetE5-WP-C redefines networked AV flexibility in a wallplate format.
Upgrade your installation with the DuetE5-WP-C 4K60 4:4:4 Wallplate AV-over-IP Encoder from Visionary – where performance, scalability, and simplicity converge on a single network cable.
Visionary introduces the DuetE5-WP-C 4K60 4:4:4 Wallplate AV over IP Encoder, Visionary’s first USB-C input wallplate, expanding the versatility of the 5 Series platform. Building upon Visionary’s proven PacketAV® technology, the DuetE5-WP-C delivers the performance and simplicity of networked AV in an elegant in-wall form factor designed for professional installations.
The DuetE5-WP-C encodes 4K60 4:4:4 ultra-low-latency video and Dante®/AES67 audio over a single Gigabit Ethernet port, ensuring outstanding visual fidelity and network efficiency. Combining both USB-C and HDMI inputs, it offers flexible source connectivity for modern devices while maintaining consistent image quality and system reliability across the network.
The USB-C input supports DisplayPort Alt Mode video and bi-directional USB-over-IP data, allowing KVM extension and USB device routing across the network. USB peripherals such as cameras or control interfaces connected to a remote 5-series decoder can be accessed through the wallplate’s USB-C port, bridging local and networked USB functionality.
Designed for quick and reliable installation, the DuetE5-WP-C is powered by standard Power over Ethernet (PoE) and connects through a single category cable. Its angled 45-degree Ethernet connector allows installers to maintain proper CAT5/6 bend-radius compliance within electrical boxes, reducing cable strain and ensuring consistent performance in tight spaces.
As part of Visionary’s PacketAV® ecosystem, the DuetE5-WP-C can operate on any standard IP network – either integrated into existing enterprise networks or on a dedicated private network. With its advanced capabilities, compact design, and streamlined integration, the DuetE5-WP-C redefines networked AV flexibility in a wallplate format.
Upgrade your installation with the DuetE5-WP-C 4K60 4:4:4 Wallplate AV-over-IP Encoder from Visionary – where performance, scalability, and simplicity converge on a single network cable.
