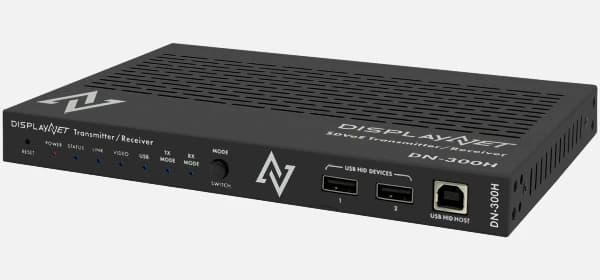

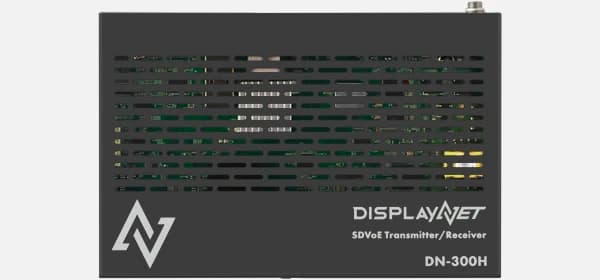

DN-300H

Unmatched Performance and Value – The DisplayNet® DN-300 Series represents a major breakthrough in performance, versatility, and value for AVoIP applications. Based on the latest SDVoE technology, the DN-300 Series delivers flawless HDMI video distribution with limitless scalability, zero-frame latency and zero image artifacts. These units support near-seamless switching and distribution of HDMI signals with resolutions of up to 4K/60p (4:4:4) with 8-bit color, or 4K/60p (4:2:2) with 10-bit or 12-bit color. Like other DisplayNet products, the DN-300 Series provides independent multi-layer routing of HDMI audio and video signals, as well as bidirectional Analog Audio, USB, IR, RS-232, and 1GbE Ethernet. Feature Rich – The DN-300 Series provides a host of unique features, such as switchable transceiver operation, PoE+ support, and dual (copper / fiber) network interfaces that enable signal extension distances of up to 100 meters (328 ft.) with CAT-6A twisted pair, and up to 30 KM (18.6 miles) with single-mode fiber. DN-300 Series units include auxiliary H.264/5 video output streams that provide support for viewing source thumbnails and for remote viewing / recording with resolutions of up to 1080 /30p. Furthermore, these units provide silent, fanless operation, powerful network security features, and versatile KVM Routing with full-bandwidth USB 2.0 on the DN-300T and rapid USB HID device switching on the DN-300H.

DN-300 Series units are housed in ultra-compact, low-profile cases that allow up to 4x units to occupy a single 1U of rack space. This makes them ideal for high density applications where rack space can be limited. Like all DisplayNet units, they include advanced, software-defined MultiViewer and Video Wall engines that enable a wide range of applications without the expense and complexity of ancillary products. Limitless Expandability – Unlike traditional matrix switchers, DisplayNet systems have no limits or restrictions on the size or design of an AV distribution system; the matrix array can be as large as the number of non-blocking ports on the network. Stacked switches enable very large systems with several hundred ports at a low marginal cost. Exceptional Versatility – The DN-300 Series utilizes DisplayNet Server®, which provides a highly intuitive web-based UI and a powerful API that makes setup and maintenance of these units incredibly fast and easy. Highly advanced features enable effortless integration with third-party controllers as well as full interoperability with other SDVoE products. Thanks to its ultra-compact, low-profile design, exceptional capabilities and outstanding array of features, the DN-300 Series enables system designers to develop and implement highly versatile AV signal distribution systems with robust performance and scalability at a very competitive price.

Features

• Silent, Fanless operation
• Switchable Transmitter / Receiver operation (all DN-300 models), or bi-directional Transceiver operation (DN-300T)
• Includes dual (copper / fiber) 10G network interfaces
• Includes two independent H.264/5 video output streams
• Versatile KVM routing with full-bandwidth USB 2.0 support
• Supports PoE+ (802.3at) over the 10GbE RJ-45 connector
• Long Range – up to 100 meters (328 ft.) using CAT-6A cabling, up to 30 km (18.6 miles) using single-mode optical fiber
• Highly Scalable – supports systems from a few ports to hundreds; only limited by the size of the network switch
• Supports HDMI resolutions up to 4K /60p with 8-bit color (4:4:4) and 4K /60p with 10 or 12-bit color (4:2:2 or 4:2:0); supports HDCP 2.2
• Independent multi-layer routing for HDMI Video, HDMI Audio, bidirectional Analog Audio, USB, RS‑232 and IR
• KVM Support – DN-300T offers full-bandwidth USB 2.0 routing, whereas DN-300H allows for instant switching of USB HID devices at a reduced cost and with advanced software features.
• Ultra-compact case – up to 4x units can be mounted in 1U rack space; horizontal and vertical Rack Mount Kits are available

Benefits

• Leverages decades of proven networking technology and massive global deployment of 10GbE networks
• AV assets no longer need to be aggregated at a central location using an expensive AV Matrix Switcher
• Enables IT Managers to easily manage and distribute AV assets within corporate network environments
• Scalable – system array limited only by the number of installed endpoints and size (ports) of 10GbE network
• High-speed uplinks on many 10GbE switches allow increased port capacity without obsoleting existing hardware
• Capable of concurrent Video Wall, MultiViewer, and Matrix Switching operation – supports diverse range of applications
• Simple Installation – DisplayNet auto-configures all connected devices even in the most complex networked systems, thus eliminating the need for complicated device configuration
