Overview

The DAV Control Nexus DAV-CNX1 is a next-generation Dante device control solution that enables browser-based routing and management of Dante-enabled systems, without the need for dedicated applications or PCs.

By providing a browser-based interface that follows the established operational concepts of Dante Controller and combining it with open APIs, the DAV-CNX1 allows both intuitive manual operation and seamless integration with third-party control systems and automation workflows.

With built-in HDMI output, USB-HID support, and Dante network redundancy, the DAV-CNX1 provides a reliable, flexible, and PC-free control platform for professional AV installations.

Key Features

• Browser-based Web GUI following the Dante Controller workflow
• Fully PC-free standalone operation
• One-touch switching of Dante routing configurations and system settings
• Flexible integration with major third-party control systems
• Built-in GPIO and relay terminals
• Webhook Outbound support
• High-reliability network design with dual Dante LAN ports

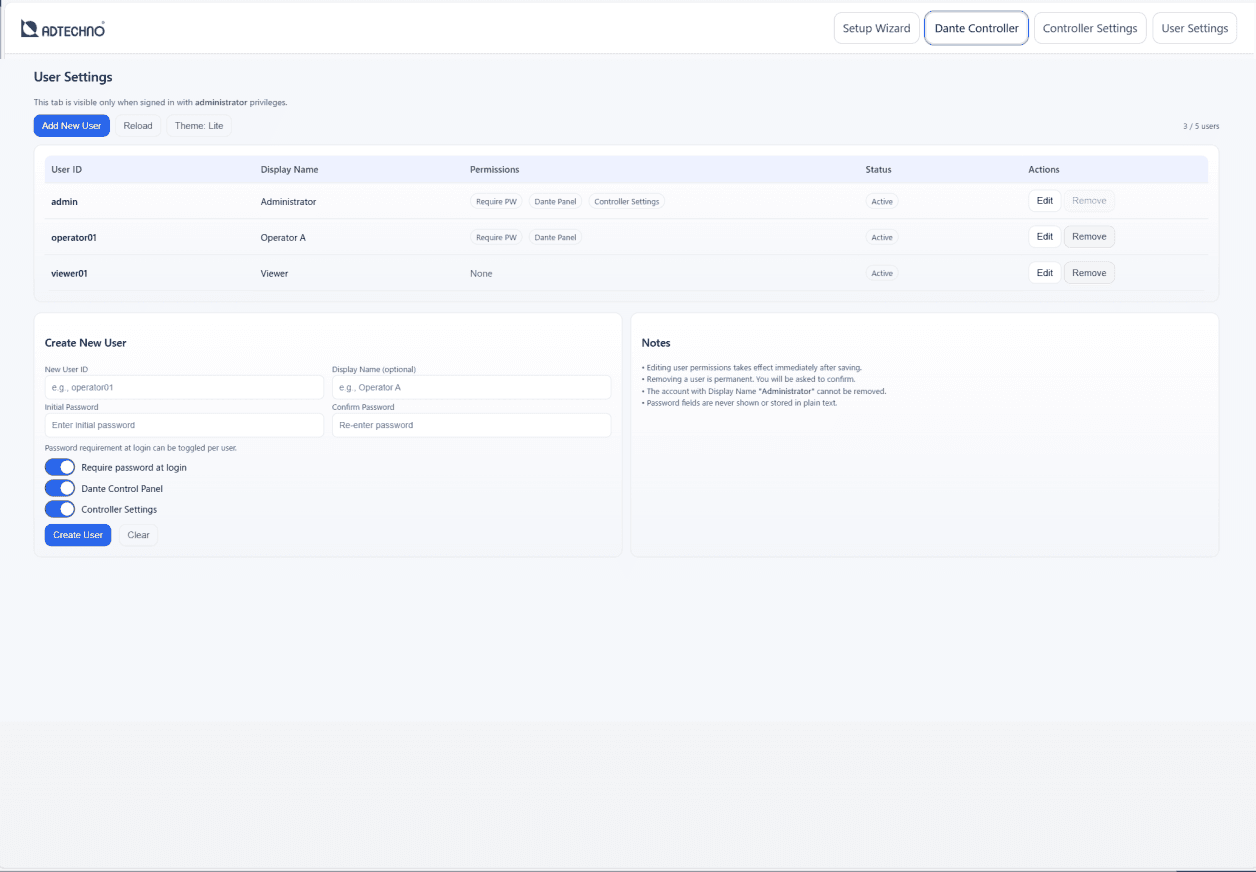

• Secure role-based user management

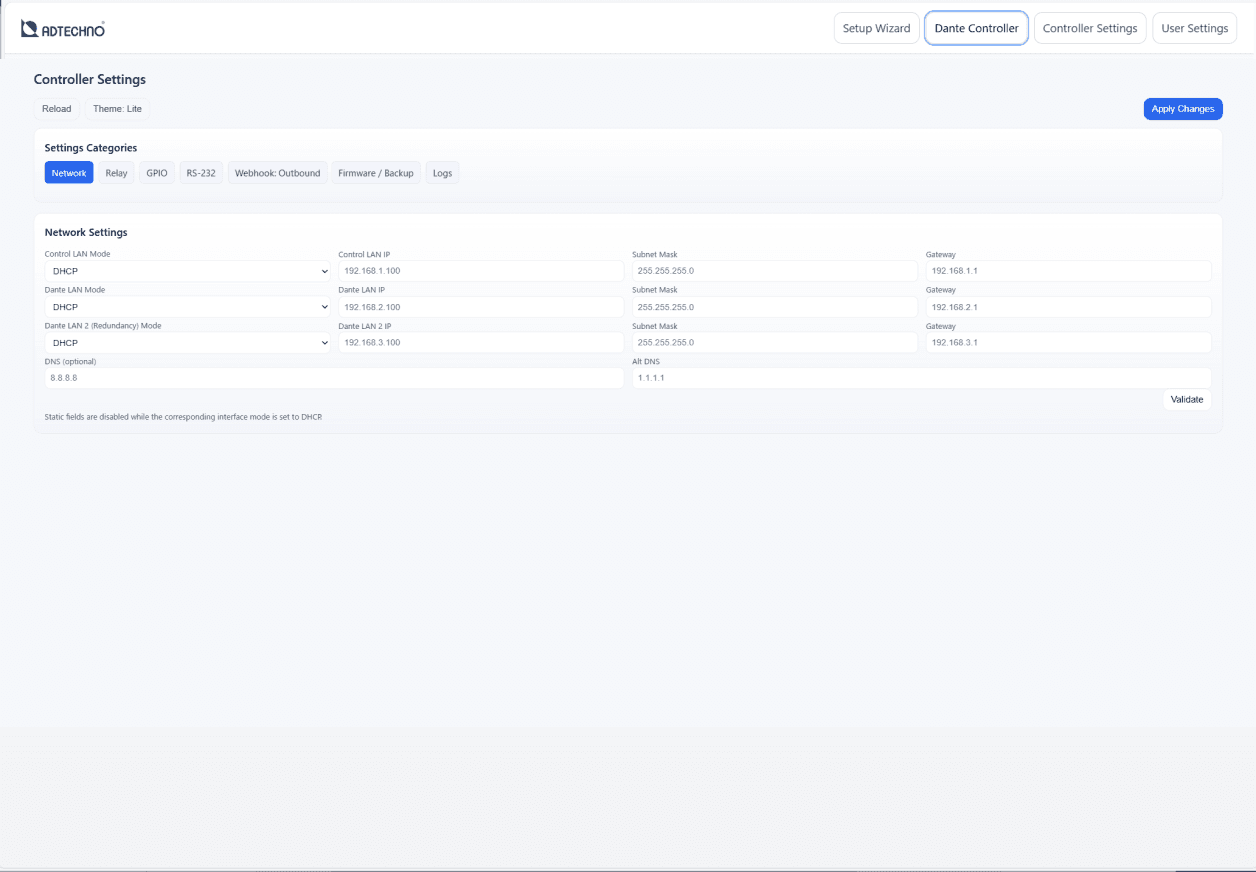

• Comprehensive network configuration management

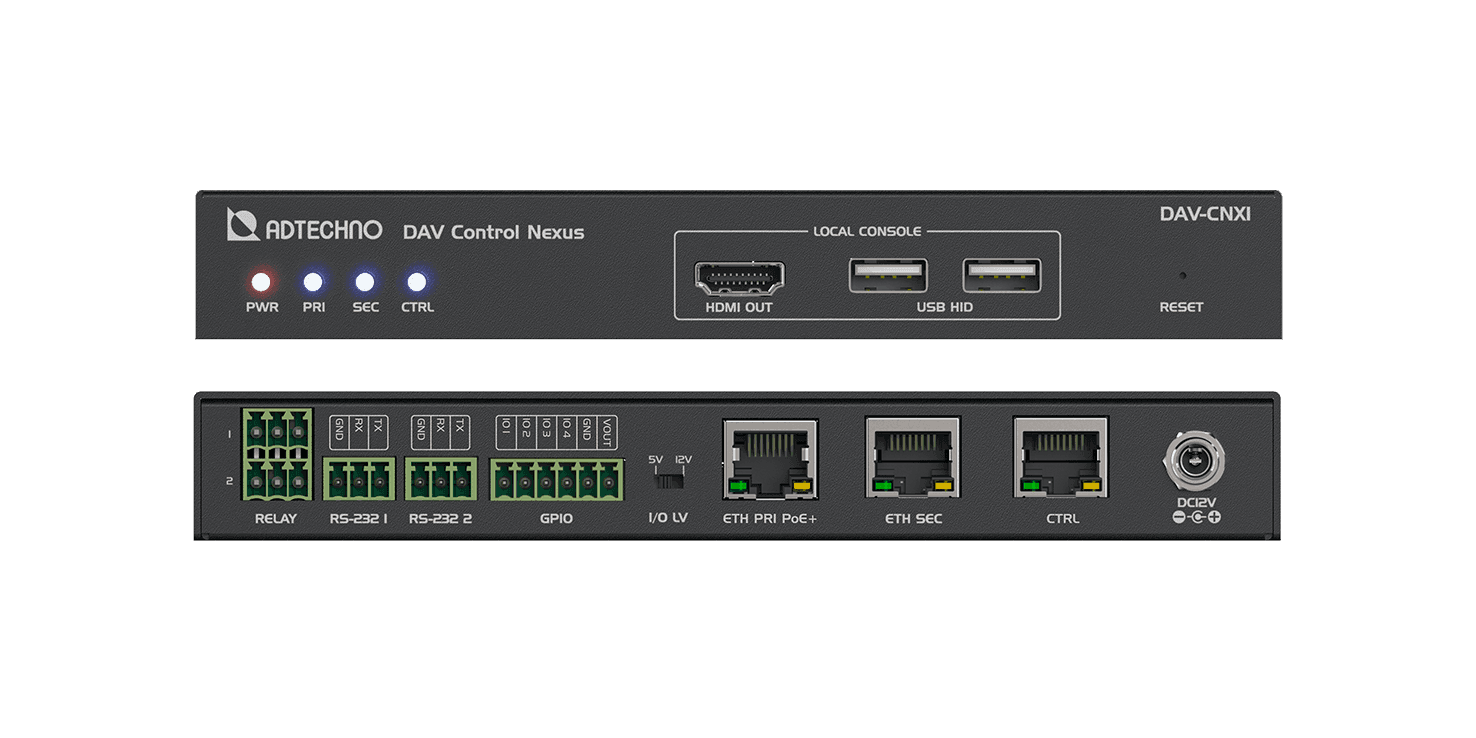

**DAV Control Nexus - DAV-CNX1**

Dante Device Control Box

• Intuitive operation via Browser-based Web GUI • HDMI output and USB HID for standalone operation • One-touch switching with Presets • External control integration via Open API • External device integration via GPIO / Relay • Event notification via Webhook • High-reliability network with Dante Redundancy • Secure user management • Centralized network configuration management

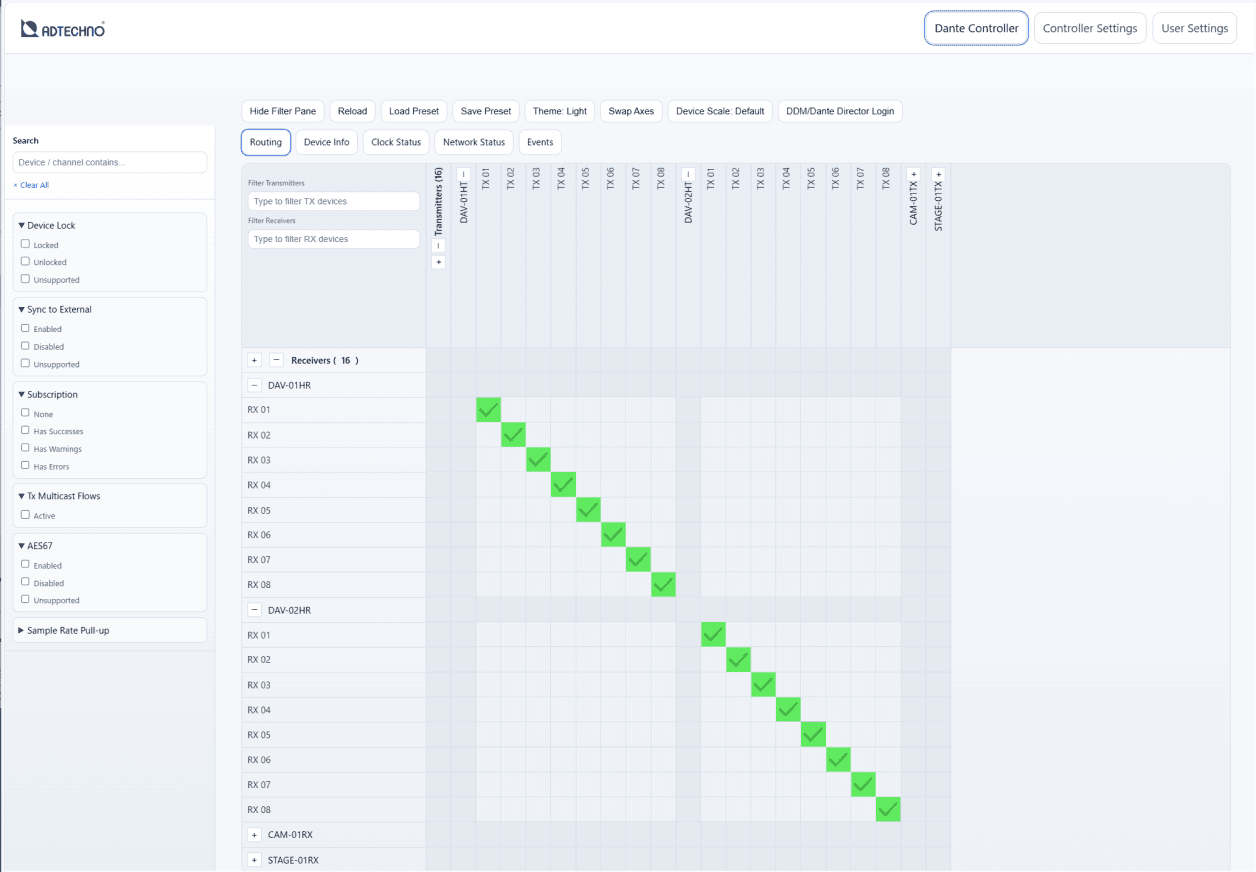

Intuitive browser-based Control Interface for Dante Systems

The DAV Control Nexus adopts a Browser-based Web GUI that follows the established operational workflow of Dante Controller, enabling centralized management of visual matrix-style routing, device information, clock status, and event logs directly from a web browser. No dedicated software installation is required.

PC-Free Web GUI Operation via Touchscreen Display

By connecting a touchscreen display directly to the HDMI and USB HID ports, the DAV Control Nexus enables full Browser-based Web GUI operation without the need for a PC. This standalone configuration allows users to control Dante routing and system management intuitively through touch, reducing system complexity and improving reliability in permanent installations.

GPIO and Relay Control for External System Integration

The DAV Control Nexus features GPIO ports that support both input and output operation, along with built-in relay outputs. These interfaces enable flexible interaction with external devices such as sensors, switches, and indicators. Using open API commands via Telnet or RS-232 communication, users can trigger Dante routing changes, recall presets, and control external equipment, enabling seamless system automation and integration.

Dante Redundancy Support

The DAV Control Nexus supports Dante Redundancy through dedicated Primary and Secondary Ethernet ports. By connecting to redundant Dante networks, the system ensures continuous operation even in the event of a network failure. This design enhances reliability and is ideal for mission-critical environments such as live events, broadcast facilities, and permanent AV installations.

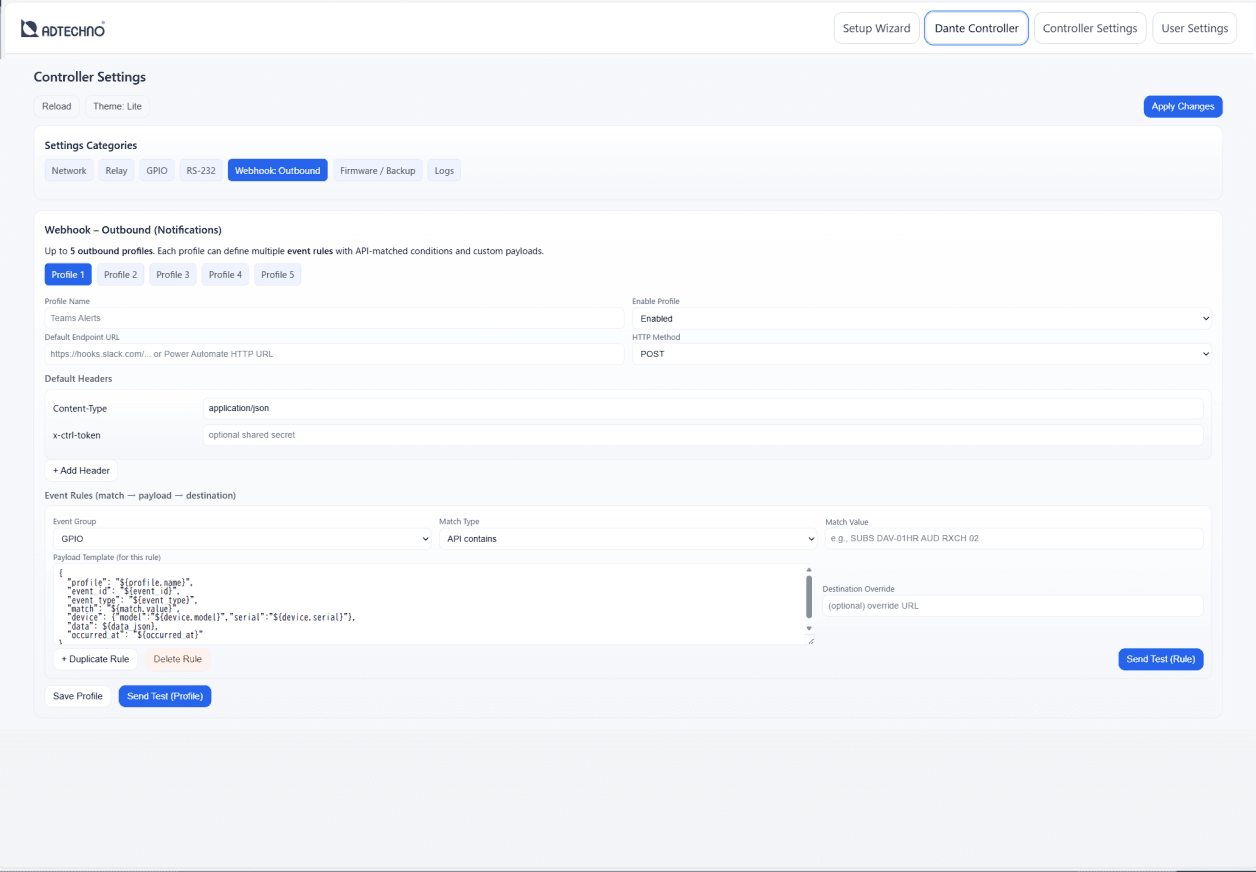

# **Smart Notifications with Webhook Integration**
DAV Control Nexus supports webhook outbound functionality, allowing the system to send HTTP notifications to external services when specific events occur. This enables status updates, alerts, and workflow automation, and allows seamless integration with collaboration tools, monitoring systems, and RPA platforms.

Open API Integration

By sending API commands over Telnet or network communication, or via RS-232 serial communication, the DAV-CNX1 can be flexibly integrated with major third-party control systems. This enables a wide range of automation and system integration, including external control of Dante routing, system status reference, and preset switching.

Specifications

• DAV-CNX1

DAV-CNX1  DAV Control Nexus - Dante Device Control Box

Network: 1 x RJ-45 w/ PoE+ (IEEE802.3at) - Dante LAN Primary                   1 x RJ-45 - Dante LAN Secondary                   1 x RJ-45 - Control RS-232: 2 x 3-pin Phoenix Female (*1 GPIO: 1 x 6-pin Phoenix Female - 4 × GPIO, 1 x 12/5V Output Relay: 2 x 3-pin Phoenix Female GPIO I/O Lv.: 1 x Slide Switch (5 or 12V 500mA) Local Console I/O: 1 x HDMI Monitor Out (GUI display) (*2                                    2 x USB mouse/keyboard Reset: 1 x Reset Button Power: PoE+ or DC 12V - a screw type DC connector (*3 Operating Temperature: 0 - 40 degrees Storage Temperature: -20 - 60 degrees Operating Humidity: 0 - 90% (*4 Dimensions: 180 (W) x 101 (D) x 24 (H) mm Weight: 610g Box Content: 1 x DAV-CNX1, 2 x Ear Bracket, 1 x Quick User Guide Regulatory: FCC/CE/UKCS/RoHS

*1 port for loop-out *2 Resolution: 1920x1080 fixed *3 PoE+ priority *4 no condensation
