DAV-03SBL

• Stunning 4K UHD 60p 4:4:4 Video Output
• Visually Lossless Colibri Codec Compression
• Intel® SDM-L Platform Integration
• Dual Ethernet Ports with Native Daisy-Chain Support
• Video Wall Synchronization
• Flexible Power Configuration (PoE & SDM Host Power)
• Seamless Integration with the Full Dante Ecosystem
• AES67 Audio Interoperability
• Introduction

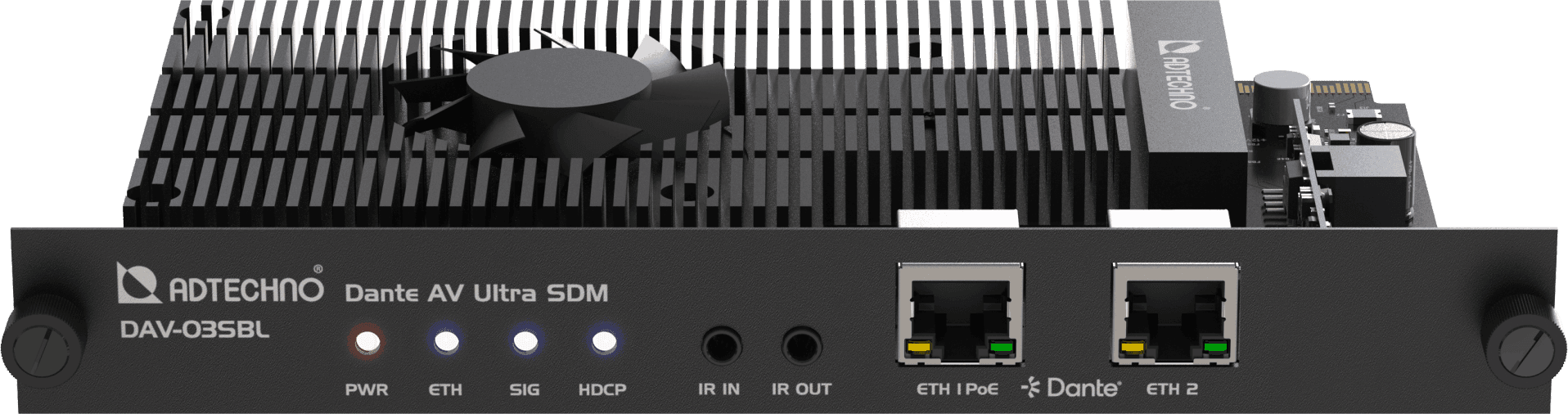

The DAV-03SBL is an advanced AV solution built on the Intel® Smart Display Module platform, enabling seamless integration into Intel® SDM-compatible displays and projectors while eliminating the need for external equipment such as wall boxes or patch panels. It delivers high-quality 4K UHD 60p 4:4:4 video and precise audio transmission with ultra-low latency and perfect synchronization over a single 1GbE IP connection. Utilizing the Colibri codec, the DAV-03SBL ensures real-time AV delivery, ideal for live events and large-scale installations. Fully compatible with Dante AV Ultra, it supports centralized control via Dante Controller, Dante Director, Dante Domain Manager, and Dante Studio. AES67 support ensures interoperability with other AES67-compliant devices. With dual Ethernet ports, the DAV-03SBL enables daisy-chain connectivity for simplified video wall and multi-screen installations, reducing system complexity and cost.

Designed for corporate AV, education, digital signage, broadcasting, and live events, the DAV-03SBL offers outstanding flexibility, scalability, and reliability for professional AV environments.

Features

Stunning 4K UHD 60p 4:4:4 Video Output

Experience uncompromised visual clarity with ultra-detailed 4K UHD resolution at 60 frames per second and 4:4:4 chroma subsampling. Perfect for demanding environments such as live events, broadcasting, digital signage, and mission-critical monitoring, where every pixel counts.

Intel® Smart Display Module Platform Integration

Designed for Intel® SDM-L, the DAV-03SBL fits directly into compatible displays and projectors. This eliminates the need for external AV receivers or decoder boxes, enabling an elegant, all-in-one installations with reduced system complexity.

Dual Ethernet Ports with Native Daisy-Chain Support

Simplify your network architecture with built-in dual Ethernet ports that support daisy-chain connections. Easily distribute signals across multiple displays without the need for external switches or hubs, reducing installation costs and potential points of failure. Dual Ethernet Ports with Native Daisy-Chain Support

Video Wall Synchronization

Support synchronization of multiple displays, allowing the creation of immersive large-scale video walls, without the need for external processors or synchronization tools, thanks to the built-in synchronization and Dante AV Ultra precision timing. Just plug, configure, and deploy.

Flexible Power Configuration (PoE & SDM Host Power)

Power the module either via Power over Ethernet (PoE) or directly through the Intel® SDM slot from the host display. This dual-power approach simplifies deployment and eliminates the need for bulky adapters or separate power supplies.

The largest AV over IP technology ecosystem

Compatible with over 4,000 existing Dante products available on the market. Controlling video, audio and control signals has never been easier with the familiar Dante Controller Software. Installing ADTECHNO Dante AV Ultra onto an existing 1GbE network infrastructure is straightforward, without management difficulties and performance issues.

Specification

| | |

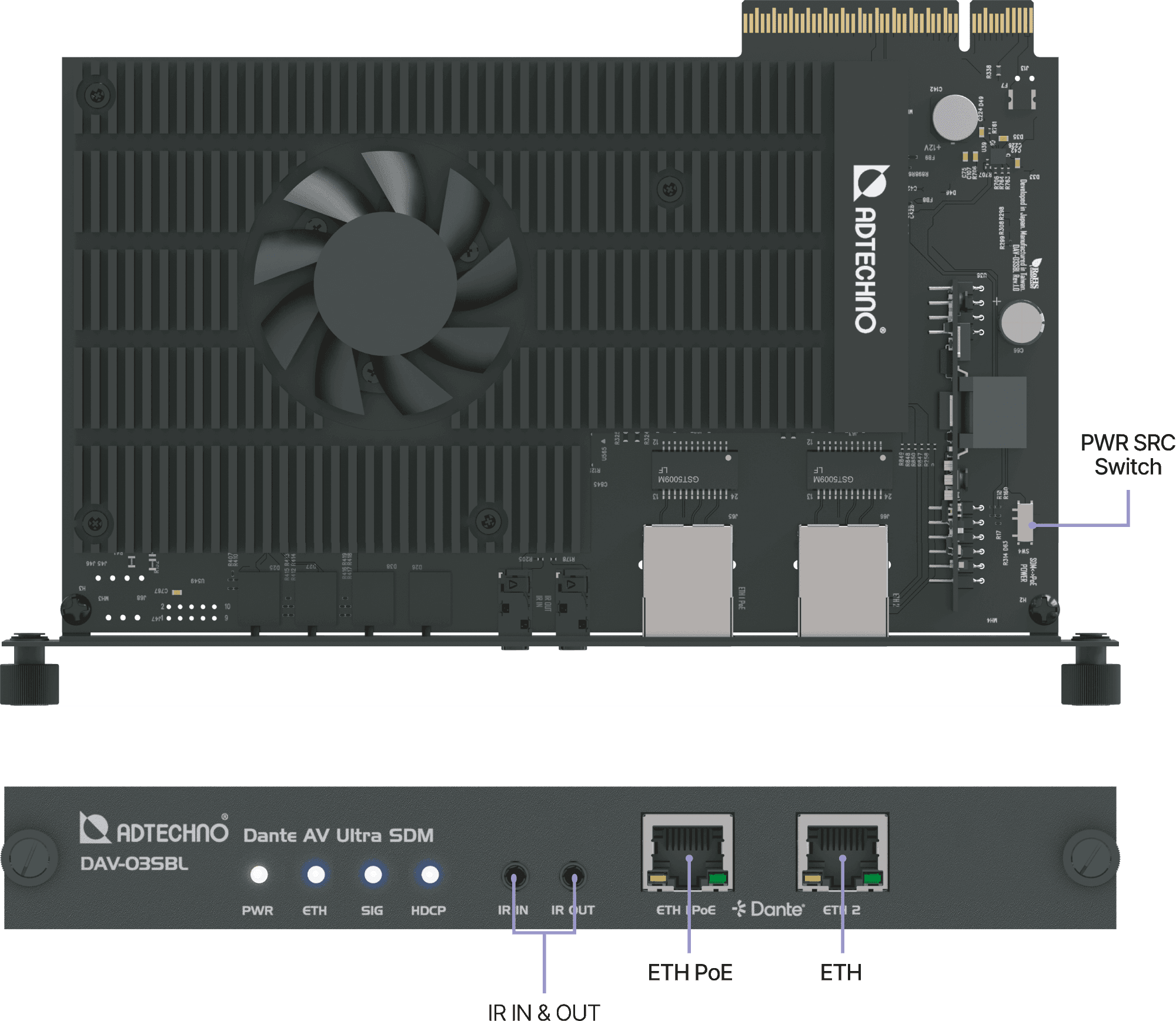

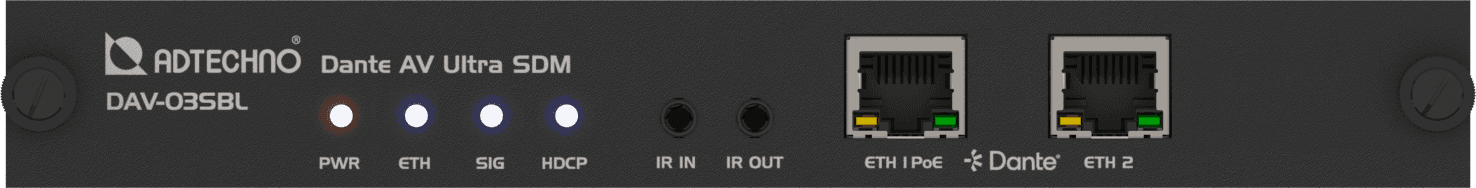

Model No. DAV-03SBL Product Name Dante AV Ultra Smart Display Module - Dante AV Ultra Colibri to Intel® SDM Audio/Video Input 1 x RJ-45 with PoE - 1GbE*1 Audio/Video Output 1 x SDM Golden Finger, 1 x RJ-45*1 Other I/O IR Input 1 x 3.5mm stereo jack IR Output 1 x 3.5mm mono jack Dimension 195 (W) x 112 (D) x 25 (H) mm*2 Power PoE 802.3 af or SDM Host Power Consumption 12W Operating Temperature 0 to 40 ℃ (32 to 104 ℉) Storage Temperature -40 to 60 ℃ (-40 to 140 ℉) Operating Humidity 10-90% noncondensing Box Content 1 x DAV-03SBL, 1 x Quick User Guidee Warranty 1 year *1 For daisy-chain use only *2 protrusions not included *Dante and Audinate are registered trademarks of Audinate Holdings Pty Ltd. All trademarks and copyrights are the property of their respective owners.

Formats

Video Output Format
