BG-IPGEAR-XTREME-CORE-TX

Features in Depth

At its core, the BG-IPGEAR-XTREME-CORE (Bought as a TX/RX pair for $999) leverages HDMI 2.1 and HDCP 2.3 compliance to support full-bandwidth signals up to FRL 6 (48Gbps). This allows the system to transmit uncompressed 4K@120Hz 4:4:4 video, ensuring pixel-perfect image fidelity with no chroma subsampling or visual artifacts. Ultra-low latency of less than one frame makes the system suitable for real-time applications such as interactive gaming, live production, and simulation environments. The system supports multiple distribution modes, including point-to-point, point-to-many, and multicast, enabling scalable video routing across an IP network. When paired with a managed 1GbE switch supporting IGMP snooping and VLANs, users can efficiently route and control multiple transmitters and receivers without unnecessary bandwidth flooding. Proprietary multi-encode and decode technology ensures stable, synchronized delivery across all endpoints. Beyond video, the BG-IPGEAR-XTREME-CORE delivers full-bandwidth audio support, including 7.1-channel uncompressed HDMI audio, Dolby TrueHD, DTS-HD Master Audio, and ARC/eARC functionality. Advanced EDID management and HDCP/CEC bypass ensure compatibility with a wide range of modern source devices and displays, reducing setup complexity in mixed-device environments. Control and data extension are fully integrated into the platform. Bi-directional IR (20–60kHz) and full-duplex RS-232 allow seamless remote device control, while USB 3.1 Gen 1 and Gen 2 (USB-C) support extends high-speed peripherals between endpoints. A dedicated Ethernet pass-through port enables network or internet access in point-to-point configurations, consolidating AV, control, and data transport into a single, efficient solution.

Overview

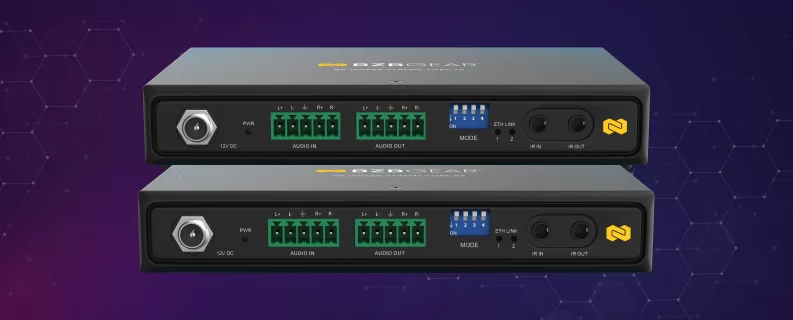

The BG-IPGEAR-XTREME-CORE is a next-generation HDMI 2.1 over IP multicast distribution system designed to deliver uncompromised Ultra-HD performance across scalable AV networks. Supporting up to 4K@120Hz 4:4:4 with ultra-low latency, it enables pristine video, high-bit-rate audio, and advanced gaming features to be transmitted up to 100 meters (330 ft) over standard Cat5e cabling. This makes it an ideal backbone for high-performance AV environments where quality, responsiveness, and flexibility are critical. Built for both point-to-point and fully managed multicast deployments, the BG-IPGEAR-XTREME-CORE integrates seamlessly into 1GbE networks with IGMP snooping support. With bi-directional IR, RS-232, Ethernet pass-through, and USB 3.1 extension, it delivers complete signal and control transport over a single network infrastructure, perfect for professional AV, enterprise, healthcare, esports, and high-end residential applications.

## Features

• bi_hdmi HDMI 2.1 over IP Multicast Distributes full-bandwidth HDMI 2.1 signals over standard 1GbE networks with multicast support

• 4K 4K@120Hz 4:4:4 Performance Delivers Ultra-HD video with no compression artifacts or chroma loss

• img10-1 Ultra-Low Latency Less than one frame of latency for real-time, interactive applications

• Four-Control-Modes Advanced Control Integration Supports bi-directional IR, RS-232, Ethernet, and USB 3.1 extension

• mdi_check-network-outline Scalable Network Architecture Supports point-to-point, point-to-many, and multicast configurations

• Audio Support High-Bit-Rate Audio Support Passes uncompressed 7.1ch audio, Dolby TrueHD, DTS-HD MA, and eARC/ARC

• HDCP 2.3 Compliance: Ensures compatibility with protected content sources

• VRR & ALLM Support: Optimized for next-gen gaming and low-latency video playback

• 100m Extension over Cat5e: Long-distance transmission without proprietary cabling

• Integrated 1Gb Ethernet Interface: Supports AV distribution over managed IP networks

• USB 3.1 Gen 1 & Gen 2 (USB-C): High-speed peripheral extension between TX and RX

• EDID Management: Simplifies system integration and display compatibility

• HDCP & CEC Bypass: Improves interoperability with complex AV systems

• Full-Duplex RS-232 (up to 115,200 bps): Reliable serial control for professional devices

• Metal Enclosure with Wall-Mounting: Durable, installation-ready design

• Web-Based Configuration & Firmware Updates: Simplified system setup and maintenance

Tech Specifications

| | |

Technical Specifications HDMI Compliance HDMI 2.1 HDCP Compliance HDCP 2.3 Maximum Video Bandwidth Up to 48Gbps (FRL 6) Maximum Resolution Up to 4K@120Hz 4:4:4 Transmission Distance Up to 100 m (330 ft) over Cat5e Network Interface (AV) Integrated 1GbE (RJ-45) Network Requirements Managed 1GbE switch with IGMP Snooping (for multicast) Distribution Modes Point-to-Point, Point-to-Many, Multicast Video Latency < 1 frame Video Processing Proprietary multi-encode / decode Audio Formats Uncompressed 7.1ch HDMI, Dolby TrueHD, DTS-HD Master Audio ARC / eARC Support Yes VRR / ALLM Support Yes EDID Management Supported HDCP / CEC Bypass Supported IR Pass-Through Bi-directional (20 kHz – 60 kHz) RS-232 Control Full-duplex, up to 115,200 bps Connectivity USB Support USB Connector Type: USB-C

USB Standards: USB 3.1 Gen 1 & USB 3.1 Gen 2 Ethernet Pass-Through 10/100 Mbps (Point-to-Point mode only) Audio Connectivity Balanced Audio Level: 3.975 Vrms / 12 dBV (600Ω)

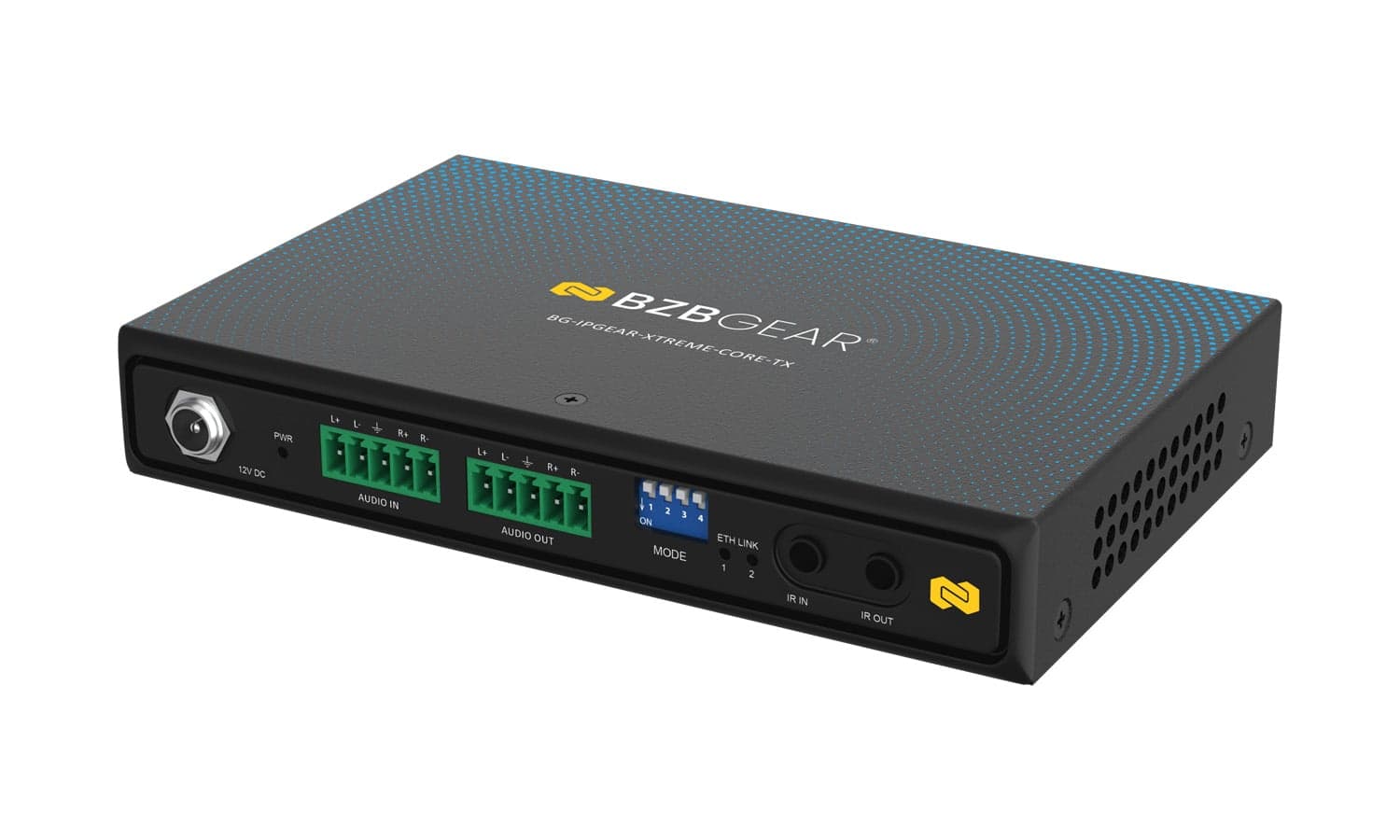

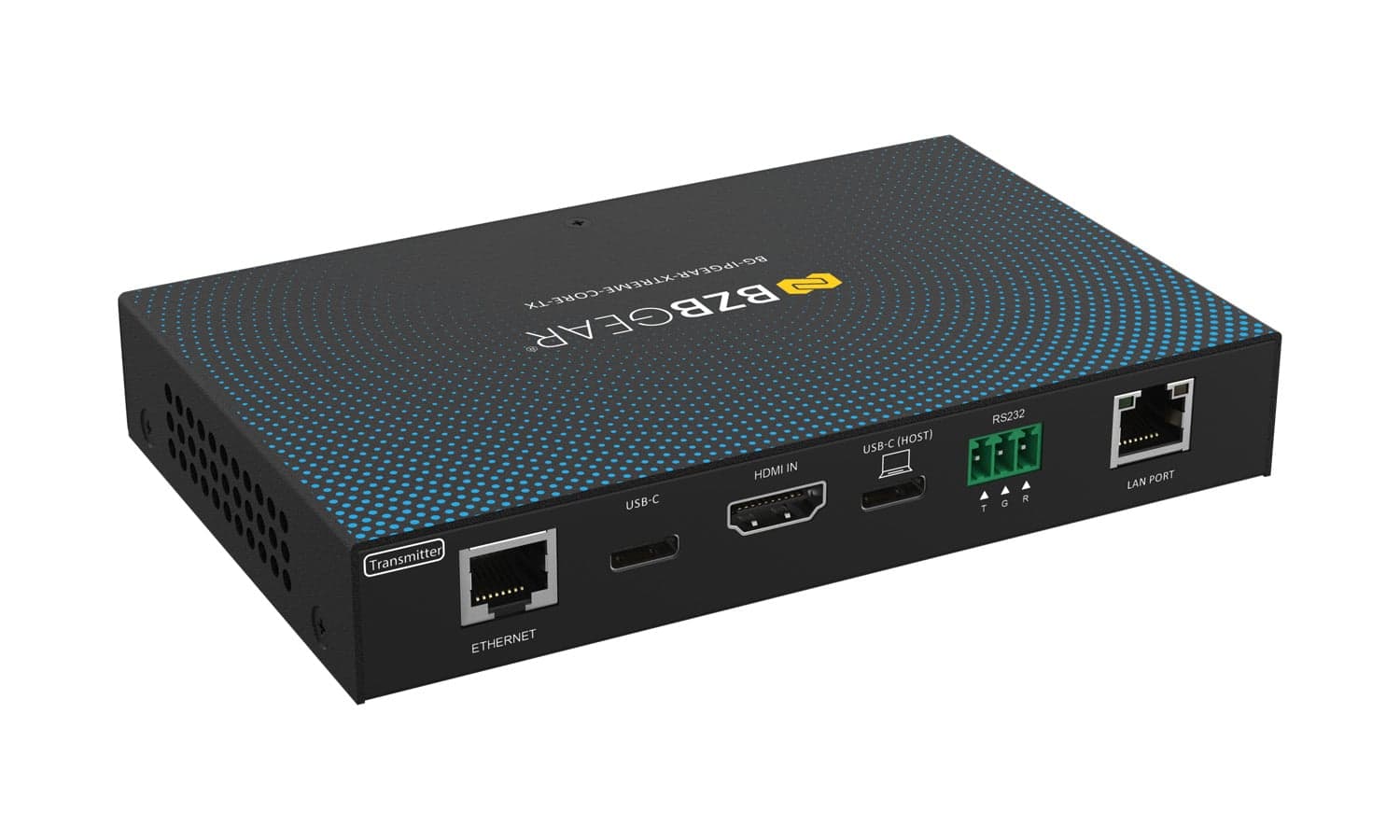

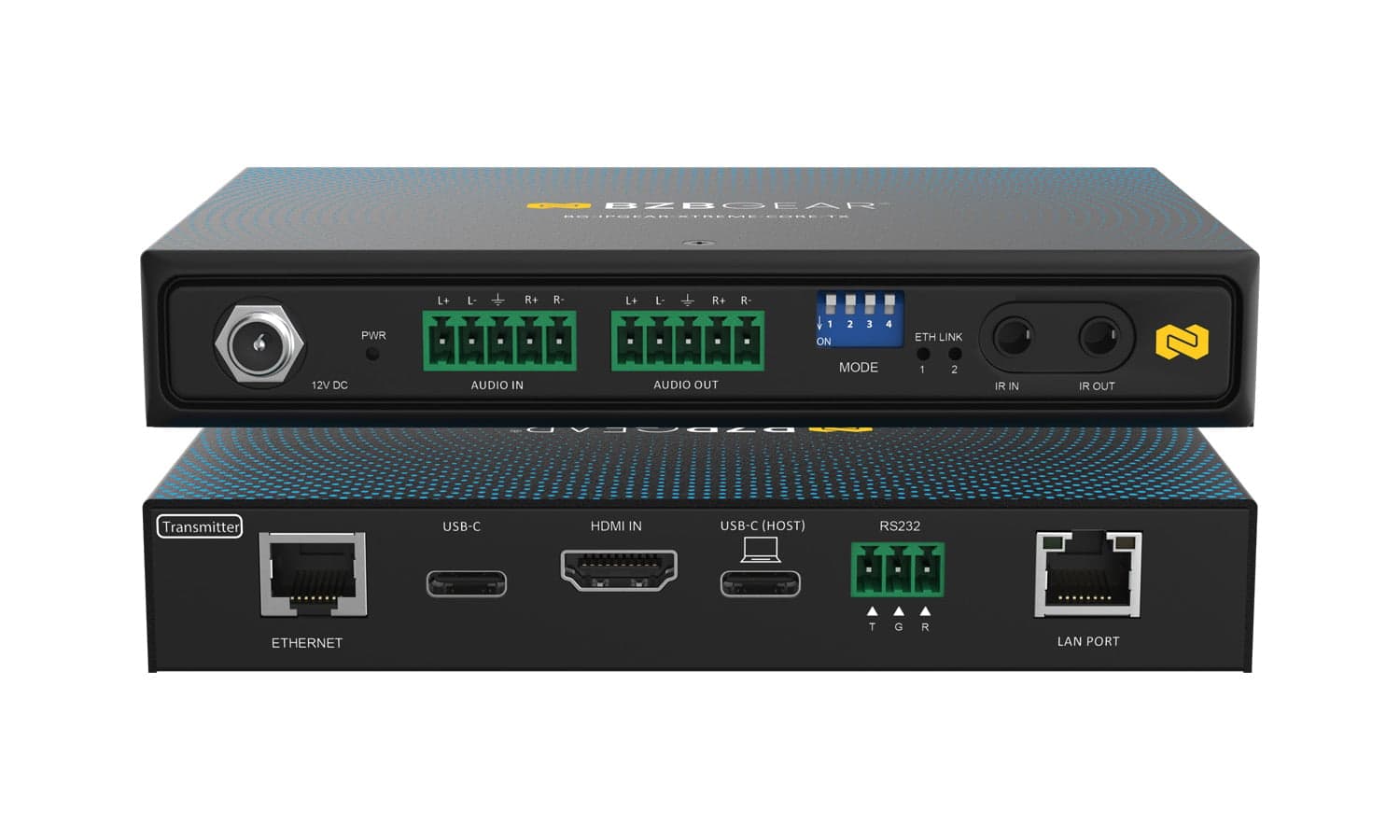

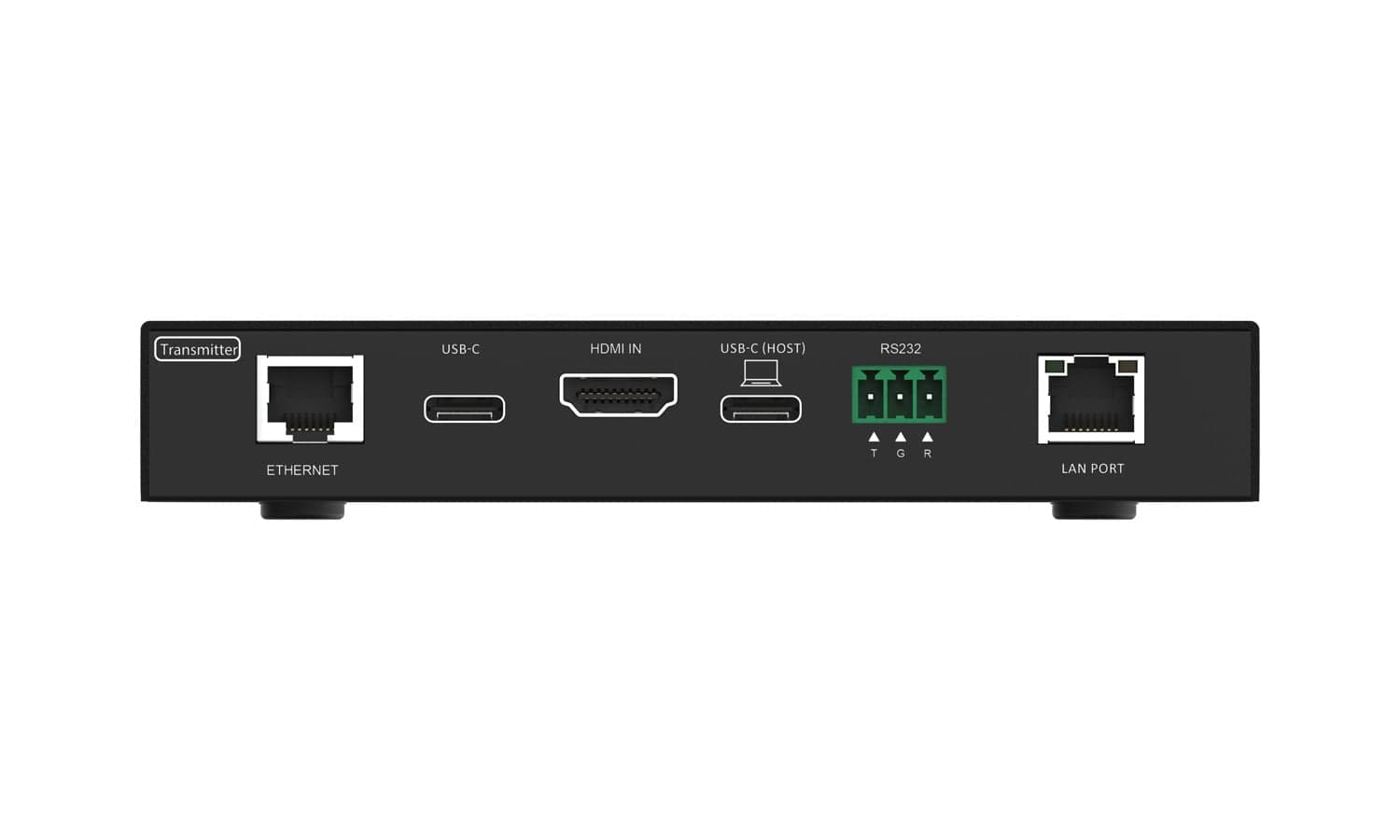

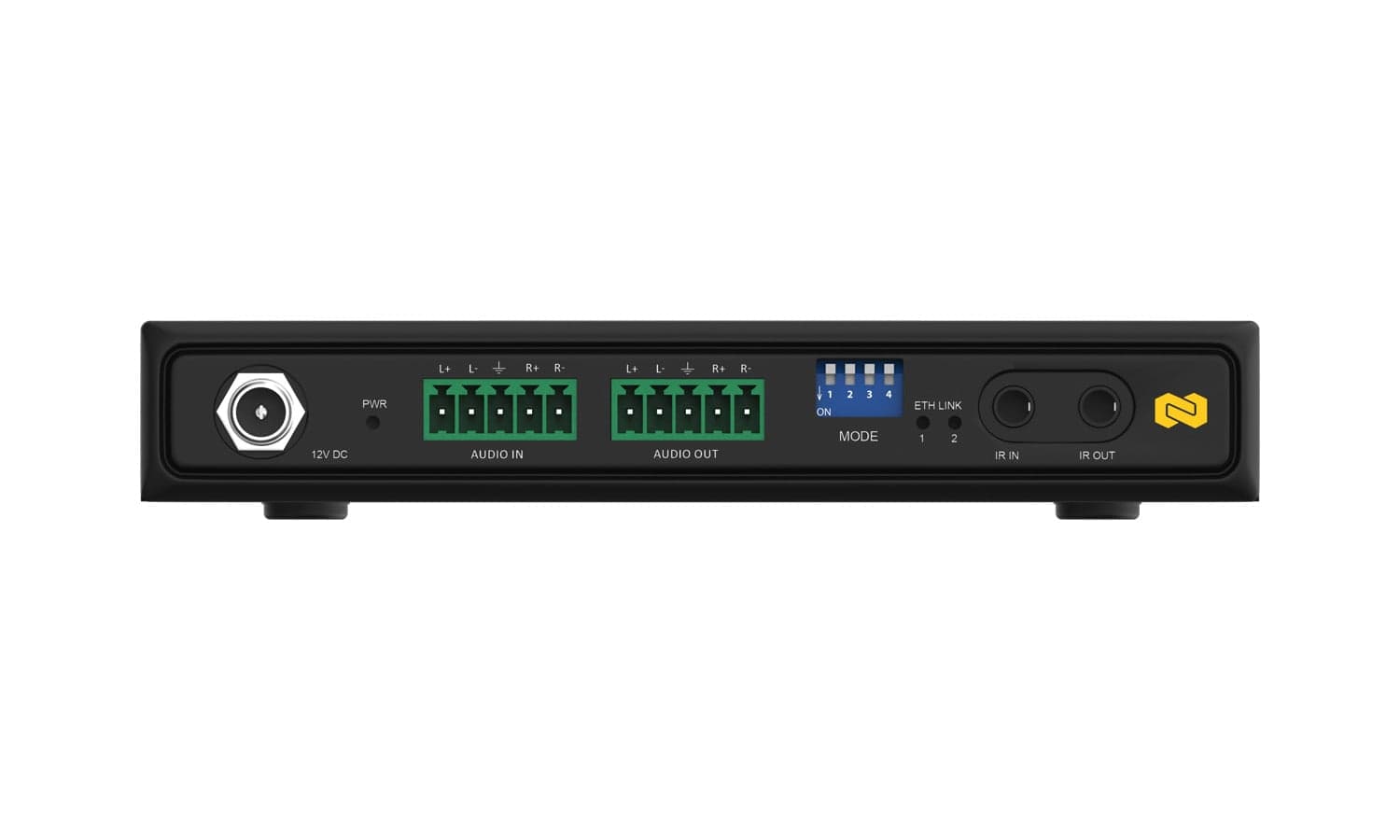

Audio Connector: 5-pin terminal block (Balanced In / Out) HDMI Connector: Type-A (19-pin female) USB Connector: USB Type-A, USB Type-C RS-232 Connector: 3-pin terminal block IR Connector: 3.5 mm (IR Blaster / IR Receiver)

Mechanical Specifications Housing: Metal enclosure Mounting: Wall-mountable Power Supply: 12V DC, PoC Operating Temperature: 32°F to 104°F / 0°C to 40°C Storage Temperature: -4°F to 140°F / -20°C to 60°C Operating Humidity: 20% to 90% RH (non-condensing) ESD Protection: ±15kV (air), ±8kV (contact) PCB Construction: 4-layer board, impedance controlled
