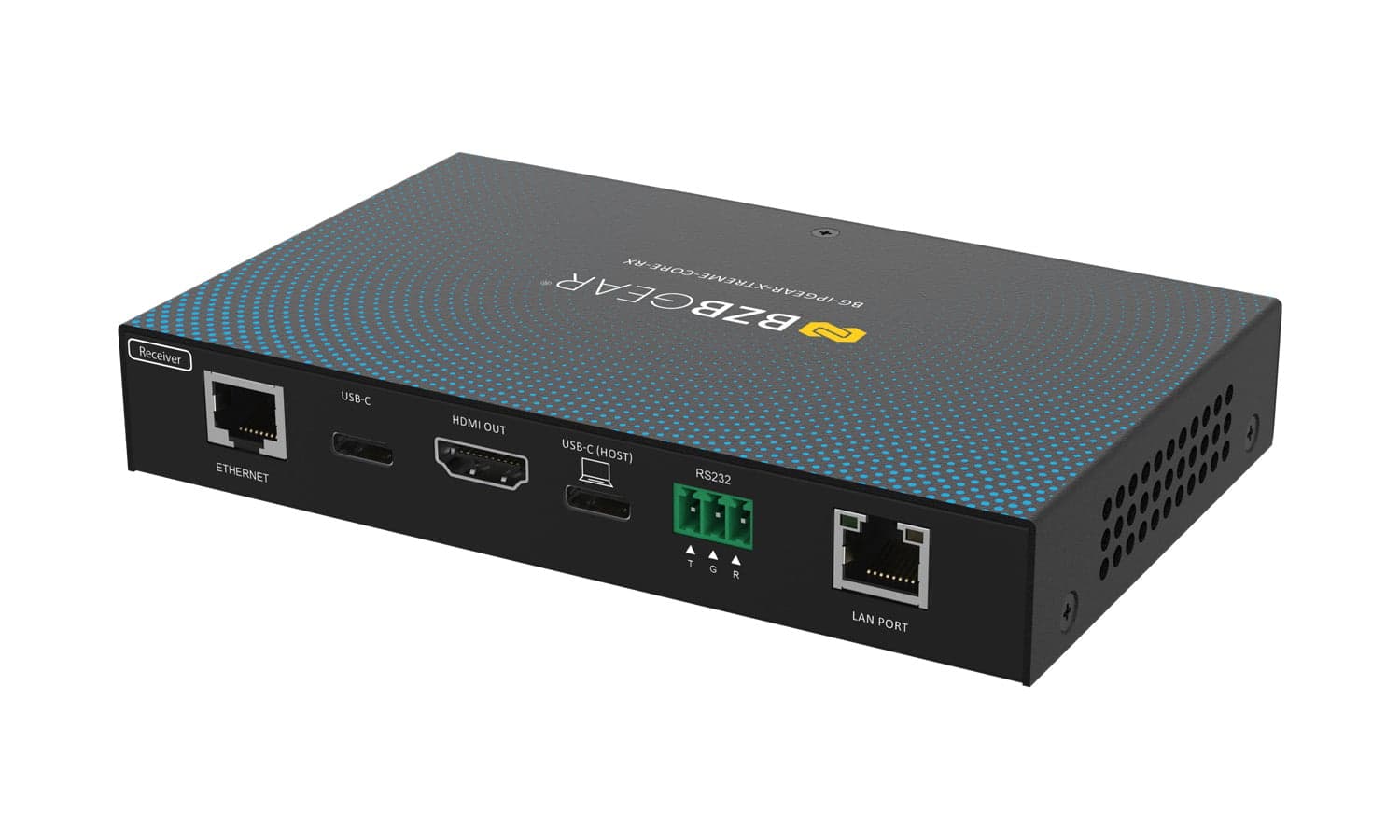

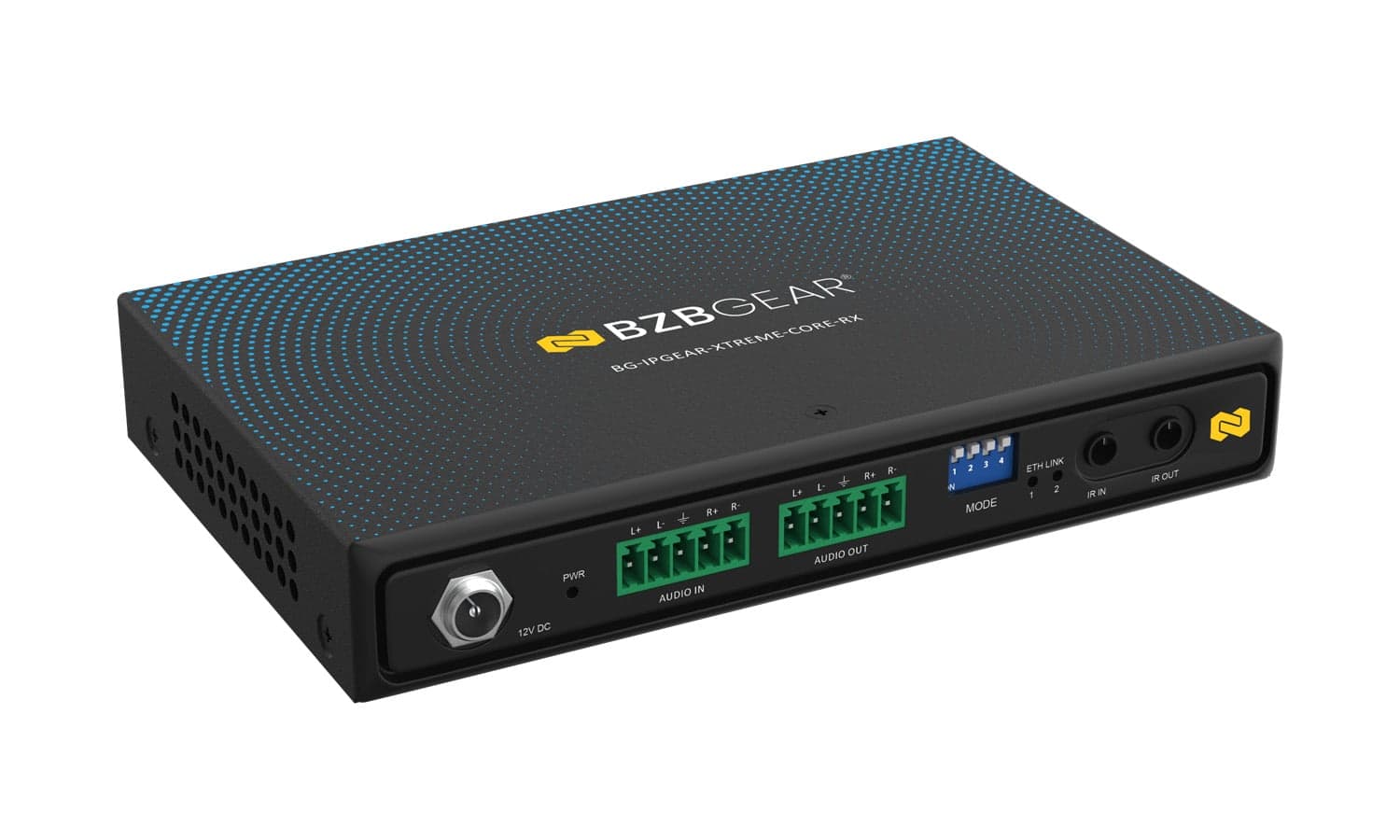

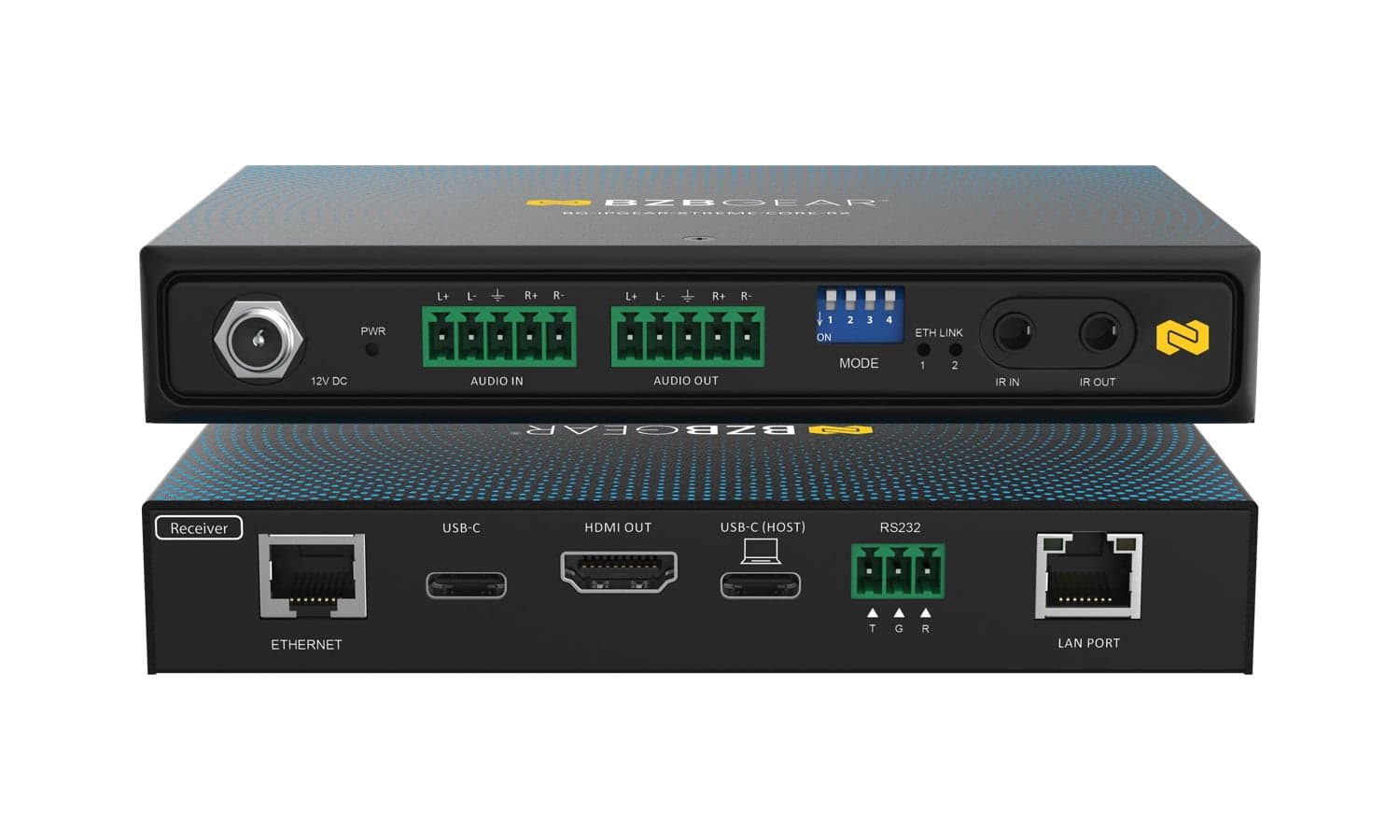

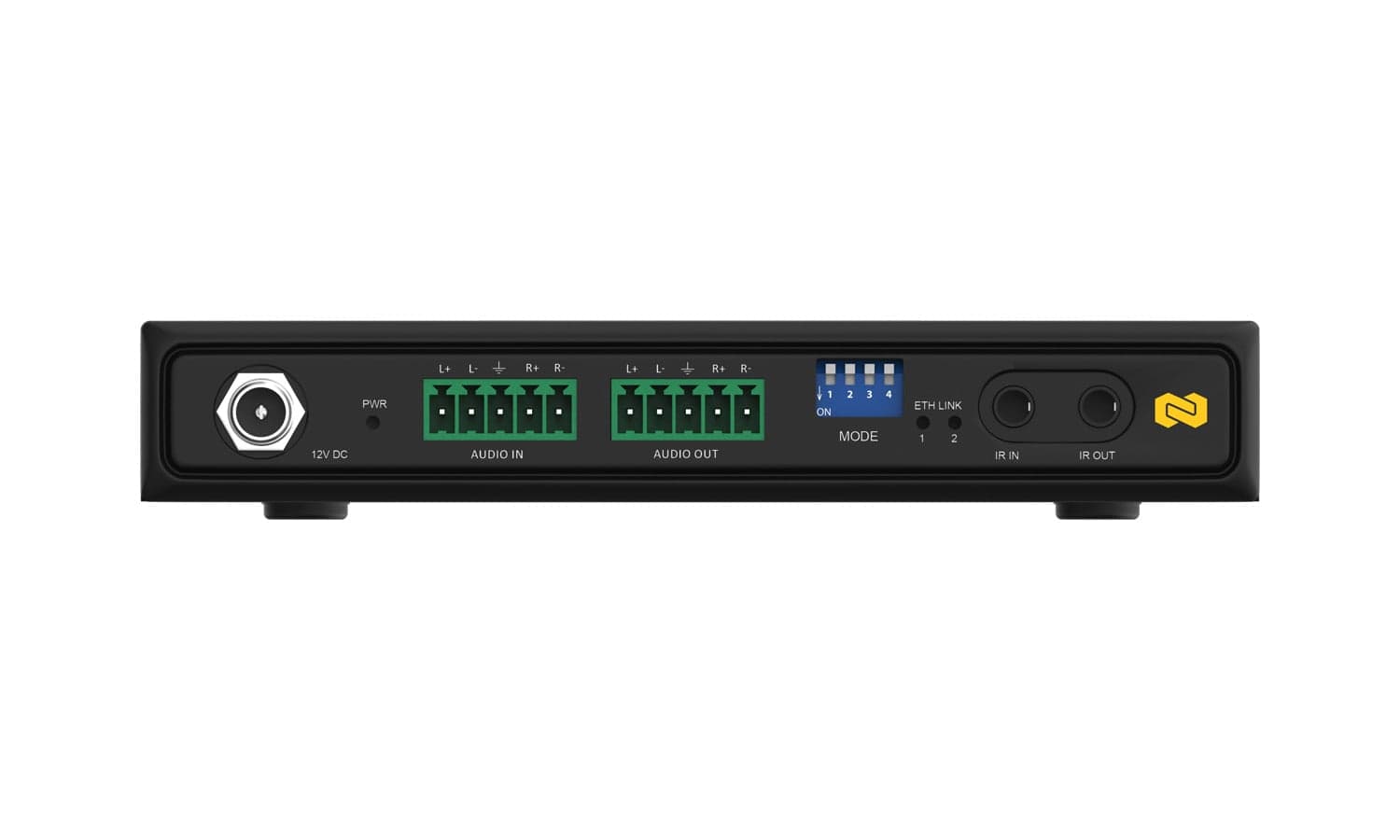

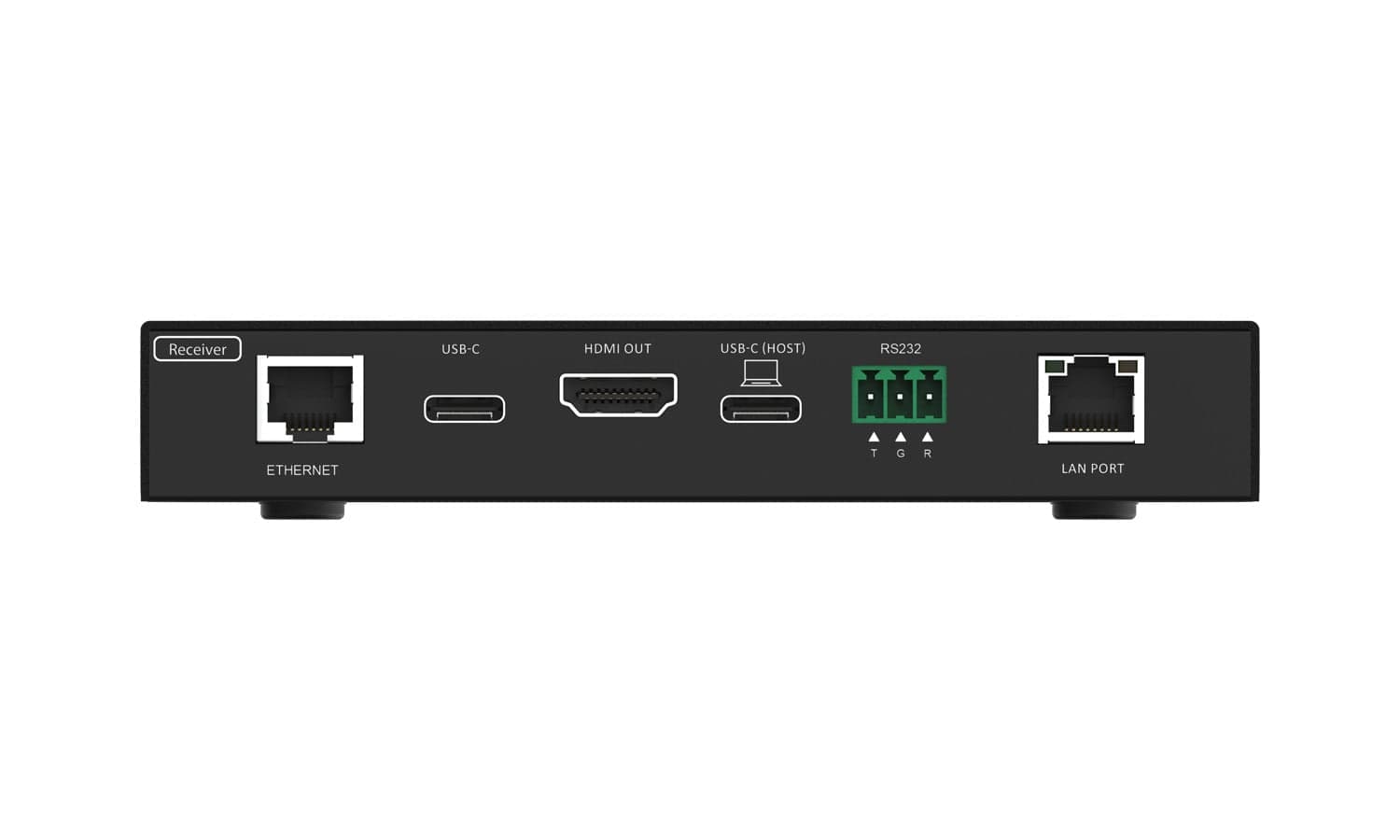

BG-IPGEAR-XTREME-CORE-RX

Overview

The BG-IPGEAR-XTREME-CORE-RX (Sold as a TX/RX Pair for $999) is a next-generation HDMI 2.1 over IP multicast distribution system designed to deliver uncompromised Ultra-HD performance across scalable AV networks. Supporting up to 4K@120Hz 4:4:4 with ultra-low latency, it enables pristine video, high-bit-rate audio, and advanced gaming features to be transmitted up to 100 meters (330 ft) over standard Cat5e cabling. This makes it an ideal backbone for high-performance AV environments where quality, responsiveness, and flexibility are critical. Built for both point-to-point and fully managed multicast deployments, the BG-IPGEAR-XTREME-CORE integrates seamlessly into 1GbE networks with IGMP snooping support. With bi-directional IR, RS-232, Ethernet pass-through, and USB 3.1 extension, it delivers complete signal and control transport over a single network infrastructure, perfect for professional AV, enterprise, healthcare, esports, and high-end residential applications.

Features

• bi_hdmi HDMI 2.1 over IP Multicast Distributes full-bandwidth HDMI 2.1 signals over standard 1GbE networks with multicast support

• 4K 4K@120Hz 4:4:4 Performance Delivers Ultra-HD video with no compression artifacts or chroma loss

• img10-1 Ultra-Low Latency Less than one frame of latency for real-time, interactive applications

• Four-Control-Modes Advanced Control Integration Supports bi-directional IR, RS-232, Ethernet, and USB 3.1 extension

• mdi_check-network-outline Scalable Network Architecture Supports point-to-point, point-to-many, and multicast configurations

• Audio Support High-Bit-Rate Audio Support Passes uncompressed 7.1ch audio, Dolby TrueHD, DTS-HD MA, and eARC/ARC

• HDCP 2.3 Compliance: Ensures compatibility with protected content sources

• VRR & ALLM Support: Optimized for next-gen gaming and low-latency video playback

• 100m Extension over Cat5e: Long-distance transmission without proprietary cabling

• Integrated 1Gb Ethernet Interface: Supports AV distribution over managed IP networks

• USB 3.1 Gen 1 & Gen 2 (USB-C): High-speed peripheral extension between TX and RX

• EDID Management: Simplifies system integration and display compatibility

• HDCP & CEC Bypass: Improves interoperability with complex AV systems

• Full-Duplex RS-232 (up to 115,200 bps): Reliable serial control for professional devices

• Metal Enclosure with Wall-Mounting: Durable, installation-ready design

• Web-Based Configuration & Firmware Updates: Simplified system setup and maintenance
