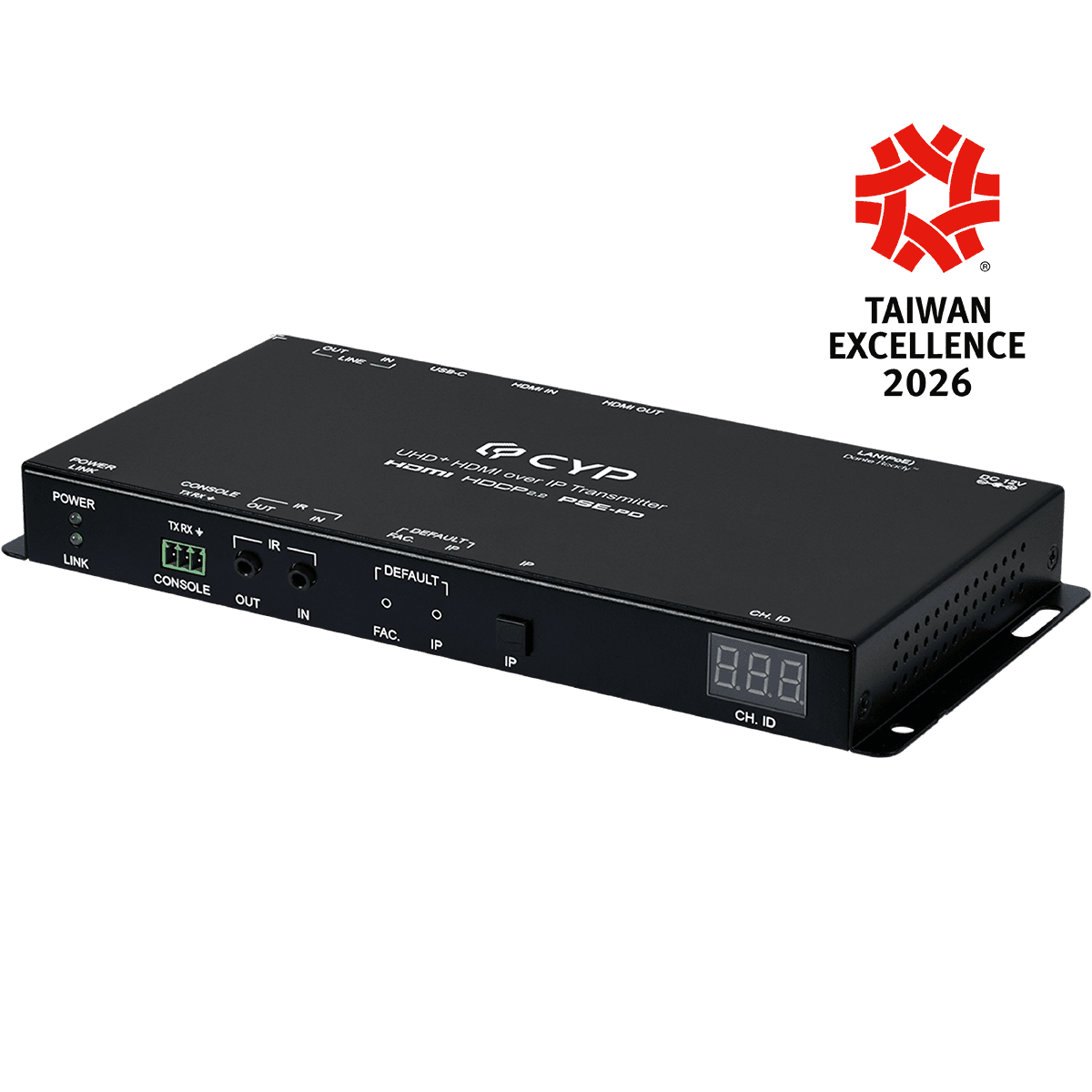

AVIP-A4601E-B1C

4K60 HDMI over IP Transmitter

• 4K@60 1Gbps AV over IP transmitter in Unicast or Multicast mode.
• IP interface: RJ45
• Supports comprehensive USB over IP functionality (USB flash drive, keyboard and mouse) and seamless collaboration across multiple windows
• Supports PoE-PD (IEEE 802.3af).
• Support IP to IR/ RS-232, converting the IP signal into IR and RS-232 commands for device control.
• Controlled via WebGUI, IP Master Controller, and Telnet
• 1×HDMI input, 1×HDMI loopback output
• Supports the use of an external control center (IP Master Controller) to provide expanded functionality (Contact your authorized dealer for more information)
• Supports independent breakaway A/V and control matrix routing
• Supports extension of many audio formats including 8 channel LPCM and standard Bitstream
• The analog Line In is automatically embedded in the streaming output and can be independently routed to any receiver
• Optional Dante ReadyTM is compatible with existing Dante and AES67 audio networks
• Dante Ready brings Dante functionality to products already shipping and installed in sites
• Channels and features can be added as an installation grows

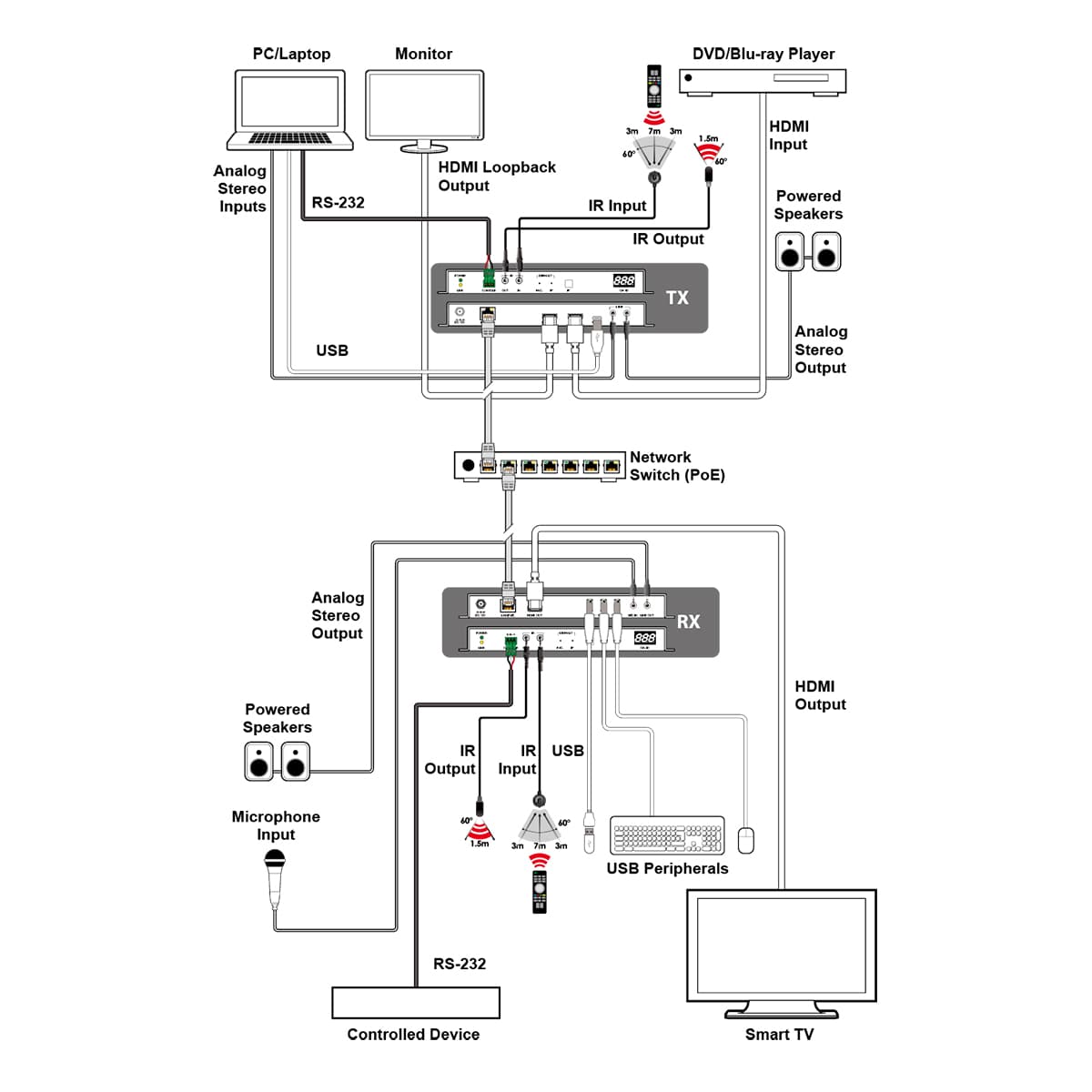

This unit supports both Unicast and Multicast modes, enabling video wall and seamless collaboration across multiple windows in Multicast mode. It supports the transmission of Ultra High-Definition signals (up to 4K@60Hz RGB) with audio and USB 2.0 up to 100m on a single cable which allows connection of USB flash drives, keyboard, and mouse. The transmission distance can be further extended (up to 100m per segment) by using gigabit network switches, allowing the user to cascade the system without signal loss or introducing delay. Moreover, it supports IP to IR and IP to RS-232, converting the IP signal into IR and RS-232 commands for device control. When the extension system's units are in multicast mode, a single transmitter's AV signal can be sent to a large number of receivers within the same local network without the additional receivers causing the bandwidth requirements to increase. Additionally, that same multicast signal can be used to create large multi-display video walls with amazing simplicity. This system also features bi-directional IR and RS-232 pass-through, analog line level in/out, and a microphone input (on the receiver). The USB functionality allows the system to act like a remote USB hub. Configuration information is provided via OSD and controlled by WebGUI, IP Master Controller, and Telnet. The unit is Dante Ready, allowing digital audio transmission and compatibility with Dante-enabled devices. Dante Ready offers secure and seamless upgrades through the Dante Controller application without complex license handling.
